If you can I would put a grate in that will hang by chains, then you can reach in through the clean out hatch and give it a bump or shake to clear the ash off the grate and out of the fire tube or linkers that might form above the grate. Leave 1" to 1 1/2" of space above the grate to the bottomof the fire tube. Make your grate larger than the opening of the fire tube by at least 2" in diameter. If the grate plugs up the gases can still go out the side of the Charcoal pile. This is great for a standing gasifier stationary unit. Some people put grate shakes on their units. I have never put any on my Charcoal gasifiers.
4 Likes
Thanks again Bob. I made some notes for what I’ll look for to make the grate. That grate will need to fit through the opening I just welded in place. Might make it a little tricky to go at least 2" bigger diameter but I could either cut the opening bigger or make the grate in pieces that can be assembled in place. Will depend on what I find or build for the grate.
I still need to make the clean out hatch and the gas outlet.
Even though this is supposed to be charcoal only, I probably should make the lid able to handle a poof. I would like to try Rindert’s idea using square tubing idea to hold the ash door closed.
Might be able to add springs to those brackets to allow the lid to lift if it needs to.
4 Likes
Hi Brian , I’m no expert when it comes to downdraft but i am pretty sure just ash pressed around the outer diameter will work on top of the brake rotors just fine , also the charcoal will naturally form a cone of sorts .
I have read comments from other people that have had much longer run times of there downdraft compared to me i have only run maybe 40 hours , but if what everyone else says about no need for a reduction as such them maybe just use the 1 brake rotor that way at least it will make it a lot lighter to move around .
Dave
PS there is no such thing as crazy idea’s and your posts will help a lot of people new and old that follow you through your journey so keep on doing what you are doing is what i say .
10 Likes
I was wondering about that. Just put the nozzle at a height that gives enough space for the reactions to take place and use it basically like an upside down simple fire. Sounds like a good idea unless someone disagrees.
5 Likes
I don’t think it will hurt to have a reduction as it will for sure help to concentrate a hot area if you were intending of mixing in some raw wood chips , with my attempt i lay a sheet of stainless steel to hold back the charcoal from the bottom of the drum and just drilled some 12mm holes in it at the far end to allow the gasses to flow down and out .
Dave
4 Likes

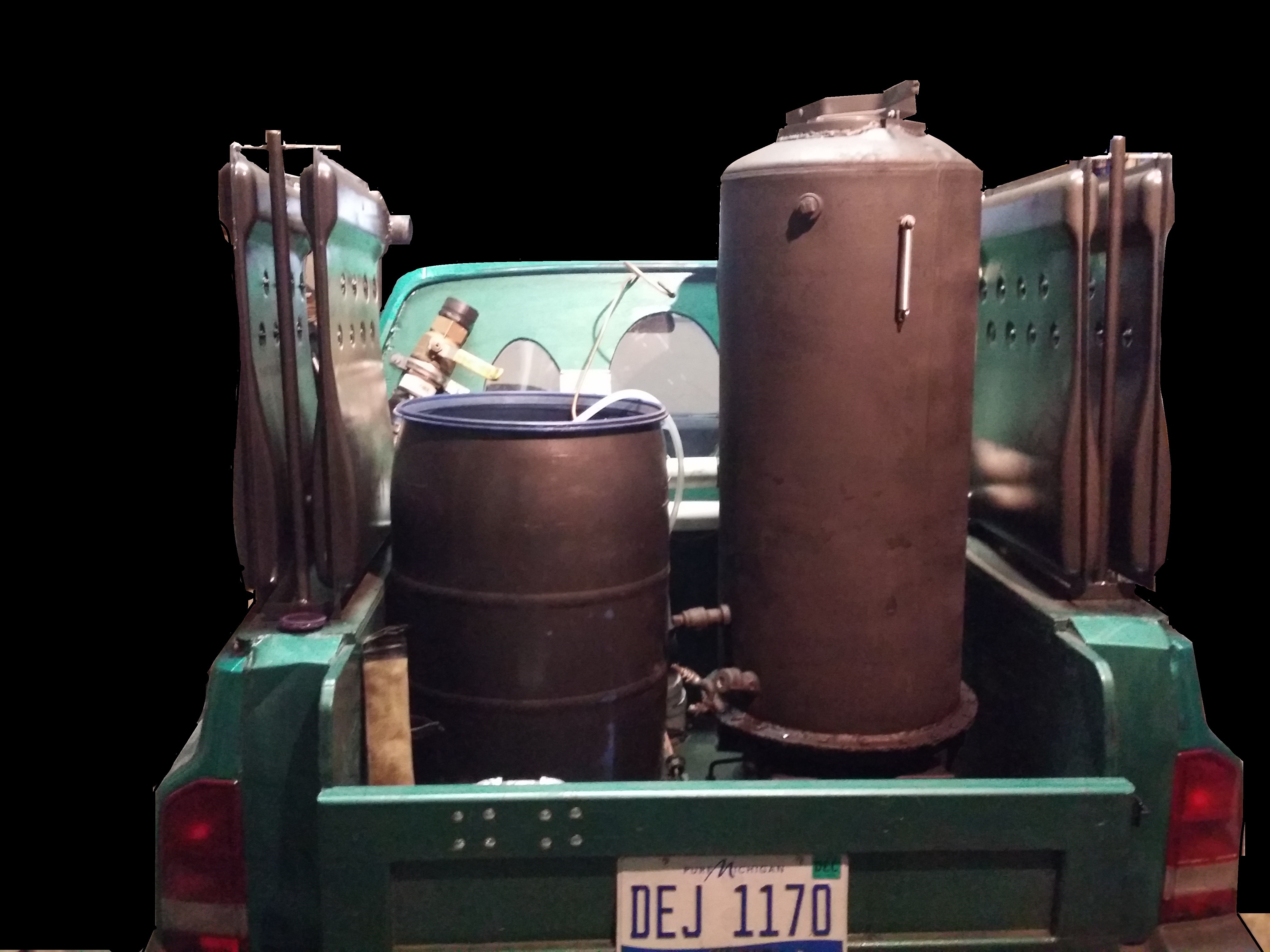

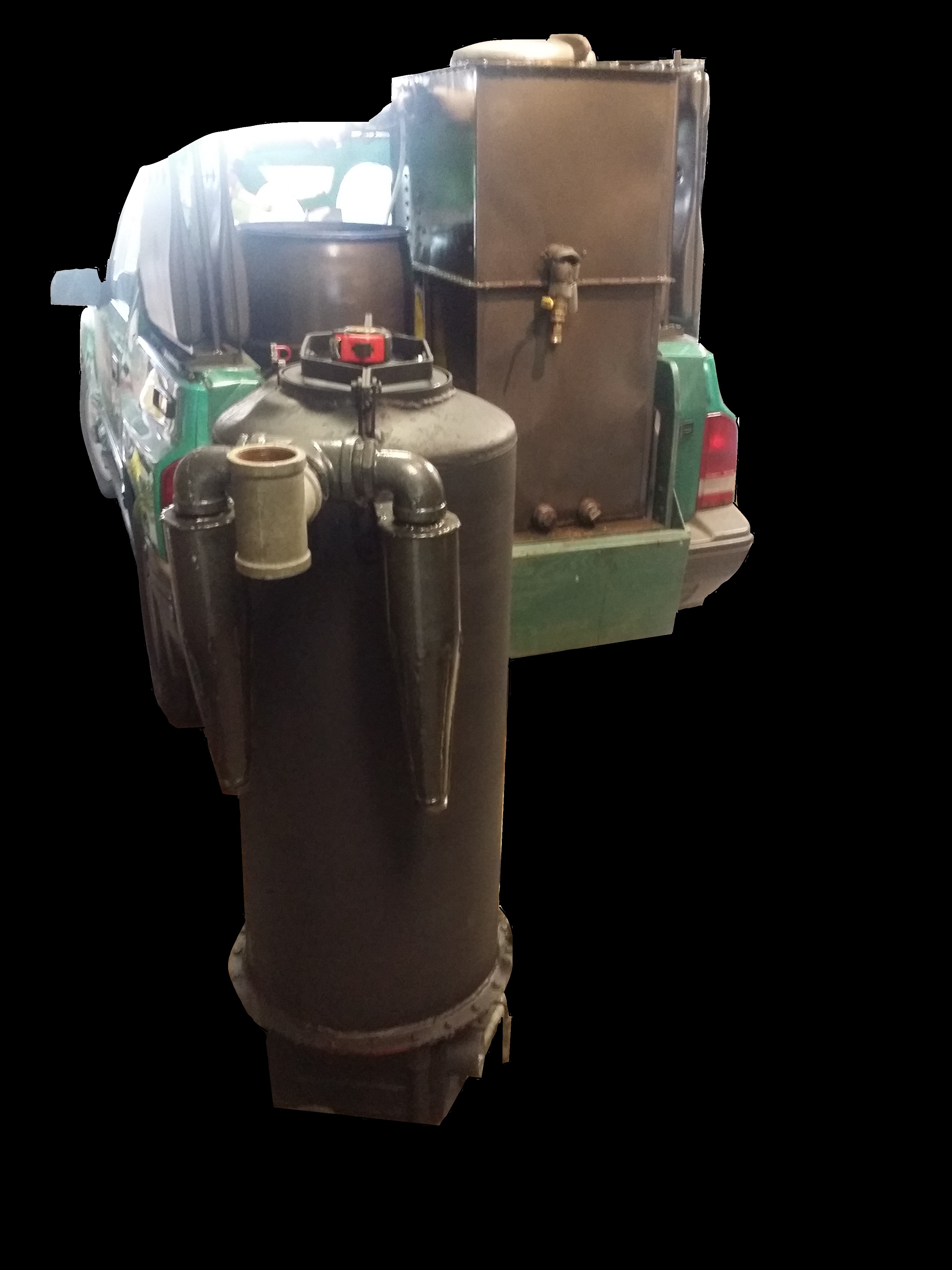

If you haven’t seen this thread it will benefit you to look through it Brian.
6 Likes
Forgive me if l sound critical, but unfortunaly this design achives the exact opposite as is the goal with a gasifier. You want to keep as much heat in the hearth as possible and prevent losses to the outside. Those rotors will work as heatsinks pumping heat from the inside out. But you answered all the solutions your self alredy. One brake rotor at the bottom will work just fine. By the time gas comes there there isnt much heat left and also it isnt needed anymore.
The gasifier will then form its own firetube, nicely insulated by charcoal and ash.
On this note, the grate can be a peace of 1/2" mesh. Used that plenty of times. A stiff rabbit fence even. Again, not much heat here to melt/bend it if the nozzle is at right height.
13 Likes
Thanks Kristijan. That’s the answer I was hoping for.
As far as the nozzle height above the grate, I would like it to be as close as possible so I can use more of the fuel before it needs refilled.
17 centimeters = 6.693 inches which is where the 7 inches I drew on the tank came from. The 12 inches on one of my drawings came from looking at my simple fire and thinking about the fuel level when it quit making good gas. Maybe split the difference and put the nozzle 10 inches above the grate. Cutting the nozzle out, patching the hole, and moving it is an option if I get the height wrong but I’d rather get it in the right spot first try. Higher up should mean less heat at the grate and less heat in the gas but less space above the nozzle as the “hopper”.
My simple fire can run the generator at least 2 hours before needing refilled. I would hope to get double that time from this bigger one.
I would like to try mixing in some wood chips or charcoal that didn’t fully convert but the main reason for wanting to switch to down draft is the ability to use damp charcoal. My last few batches are still in the sealed barrel so should be pretty dry but all the rest of my charcoal is in open top buckets or containers that are not air tight.
9 Likes
Not having super dry Charcoal will be always a problem here where I live. We only get 15% rain fall a year here, the reports say. But the moisture in my covered wood is about 10% , so I would say my Charcoal is about that all the time, I would think?
Over on the rainy West side of the Cascade Mountains where Steve U. and Marcus live in Washington State the rain fall is much higher.
So running my Charcoal gasifier with moisture Charcoal is good for me. So I just forget trying to keep the Charcoal dry as the desert in drought time. Keeping it in open containers is good enough covered with a board and plastic over it. I put holes in the bottom of my containers too, to make sure no water can fill them. Besides moisture in the Charcoal keeps the nasty black dust down when hangling it. Like KristijanL said no sign of dust is good, it has about the right moisture content in it for use in the gasifier with out water drip being added to it. A win, win in my opinion.
6 Likes
I’ll admit, the last couple days I’ve been running the generator on GASOLINE. Partially because I took the filter apart on the simple fire and partially because I was welding and wanted to make sure I got good penetration welding the tank back together.
Took about a gallon of gasoline to do a few welds and some grinding. Makes me realize how much I was using that gasifier. A half hour here, an hour there adds up. The generator manual said 10 hours per 4 gallon tank at 50% load if I remember right. At full load it obviously uses considerably more.
Welded in a fitting for the nozzle and a ring of sheet metal around the lid.
Now, I need to refill my filter so I can stop wasting gasoline and get back to charcoal.
One more run on gasoline to make some planer shavings. These are two of the birch boards I made on the sawmill thread.
These were sawed at 1 inch minus the blade thickness and they finished at 3/4 inch.
My filter now has a layer of gravel on the bottom, and a couple pieces of felt over that.
Then a layer of the planer shavings. This was fresh cut boards but the log had been laying around for a long time so mostly dry.
Another layer of felt on top to keep from sucking up planer shavings.
Should be ready to run again as soon as I fill it back up with charcoal. I’m going to get my tools set up ready to use before starting it but I expect it to work. This is the first time running with the rocks and new gasket on that filter.
This is the ash clean out port for the new gasifier. The old simple fire powered the grinder to cut off this big piece of pipe and did most of the welding although it complained about that. This is way thicker than the welder was made to do and the generator running on charcoal was giving it everything it could. I’d be really surprised if I don’t find some leaks here but that’s one more step closer. The inside diameter is around 4 inches and the outside lip is around 6 inches with a groove to put a gasket.
The simple fire got really hot and ate a lot of charcoal. I didn’t time the run but it was working pretty hard most of the time it was running.
I refilled it and I’d guess it took about 3 gallons of charcoal.
8 Likes
That filter should work really good with those rocks to help coalesce moisture, and the planer shavings. Felt will help too.
5 Likes
One more step before I call it a day.
This is the idea for the nozzle. As marked, I’m thinking about 5 holes in the flute and will have them pointed down. The simple fire has 4 flutes if I remember right so this will be one extra unless I change my mind before I drill them.
Not sure what diameter I’ll make the holes but probably smaller at the end.
It’s a 1/2 inch diameter pipe 11 inches long.
6 Likes
If you have the ability to take it in and out, start small and make them bigger if it’s not running the generator.
Edit:
I’d say 3 holes at 1/4" to start. I ran a 2 liter with 6 holes at 3/8" for reference.
3 Likes
I drained out maybe a tablespoon of water out the bottom after the run. I opened the top and there was some condensation on the lid but the felt looked clean and the planer shavings were a little damp but not wet like before I added the rocks.
I didn’t empty the charcoal from before so it had more moisture than it should have had. Still run OK but probably would have run better if I would have changed it to dry charcoal. Hopefully the new gasifier isn’t so picky about the fuel.
I’m still happy with the simple fire and will continue to use it but will probably dedicate the down draft gasifier to the generator and use the simple fire for the log splitter or maybe a different generator at another location.
5 Likes
Looking around for a cover for my ash clean out port I might use an old circular saw blade.
This was just a thought before it gets dark here. Pretty close the right size and flat.
The square tube I have isn’t big enough so I’ll probably use angle iron to bolt this in place using the flat bar as support and to block the holes in the blade.
I still have more to do before I need to worry about that so I might find something else that looks nicer but this should work.
Next step will either be the gas outlet pipe or the grate as well as welding the end of the flute nozzle shut and drilling some holes.
That flute nozzle should be easy to get to as long as the charcoal is not in the way so I’ll start with less holes than I originally thought and drill more or enlarge them if needed.
Oh yeah, I forgot to mention but the bottom of the tank is rounded and my clean out isn’t at the lowest point but I figure I will just leave some ashes in it to help insulate the base.
8 Likes
Looking great Brain, nice workmanship on your build. Yes use your simple fire on your more portable stuff. And like the bigger gasifier handle the generation part. I like the saw blade idea, I have a few old blades on the wall. Put them into a new use as hatch covers for clean outs.
5 Likes
This doesn’t really have anything to do with this build but kind of related to the saw blade and I didn’t want to lose this video just in case I needed another project someday.
On the comments Kristijan said it was a sawblade 2 or 3mm thick but should have been 4 or 5mm.
Mounted directly on the PTO of a 70hp tractor at idle.
I haven’t looked to see if there was any more information on this here but doesn’t look complicated to figure out just from the video.
EDIT:
EDIT AGAIN TO ADD:
5 Likes
Looking good. You might run in to some problems with the nozzle overheating (heat rises up) but definitly go small on the nozzles. Like Cody sayd l wuld go 3 6mm for a start.
Problem also with a down facing nozzle is molten slag drips down the nozzles and plugs them. Atleast it was in my case…
The chunker was stupid easy and cheap to make and worked good, apart from the disc being too thin. Only aditional talk about it was me recomending to Cody to change the geometry of the disc from this snail shape to a more rounded shape for extra strengh.
8 Likes
Hi Kristijan, I plan to use 1-1/2 inch schedule 80 pipe passing entirely through a 100 pound propane tank. I want to try two 6mm nozzles inclined 20 degrees down from horizontal. Nozzles pointing away from 4 inch perforated grate on opposite side 10 inches below nozzles. The tank is 15 inch diameter. I plan to line the tank with 1 inch refractory insulation. I plan to place the nozzle holes 7 inches apart drilled at 45 degrees facing toward each other. 45 degrees points the two hot zones into the center and allows easy cleanout from each side opening. Do you see potential problems with any of that? Thanks in advance for your thoughts.
5 Likes
Correction: to 3/8 inch nozzle size 8mm or 9mm?
