Vacuum Automixer project

Hi Tom,

I meant a balanced air flow, not weight balance. The linkage will have no effect on the airflow properties.

Yes I am going to use bearings, because they’re cheap and I think they have some benefit here. Overall forces are so low, I need to conserve energy where I can.

I’ll post a video shortly to explain better.

Well ChrisKY depending on just how smooth you do want these to be . . . .
I’ve used press-in oilite (sinstered bronze-grapite) shouldered bushings.
Even on some vertical shaft appilcations had the botom of the shaft rest in a welded on made-up pocket with a hard steel ball in it. This is common small electric motor stuff.
Sigh. The absolutly lowest drag set up’s become hand fitted master craftsman affairs. And in use would soots/tars/condnesates gum and corrode up quickly on woodgas.

Ha! I figured out then why the overfiltering and gas reheating insistance of some expereinced woodgassers from my once hand fitted valves.
Stick with your more carbons over-rich “inperfect” woodgas beginnings and make the equipment just eat it!!

Lookin’ good 'nuff
Steve Unruh

2 Likes

There are lots of very smooth sealed ball bearings made for Hobbie rc cars that may work… just thinking out loud here

Thanks for the help guys. Steve i promise not to go overboard with perfectionist stuff. This is more a robustness concern than tweaky perfect low friction. Should last a long long time.

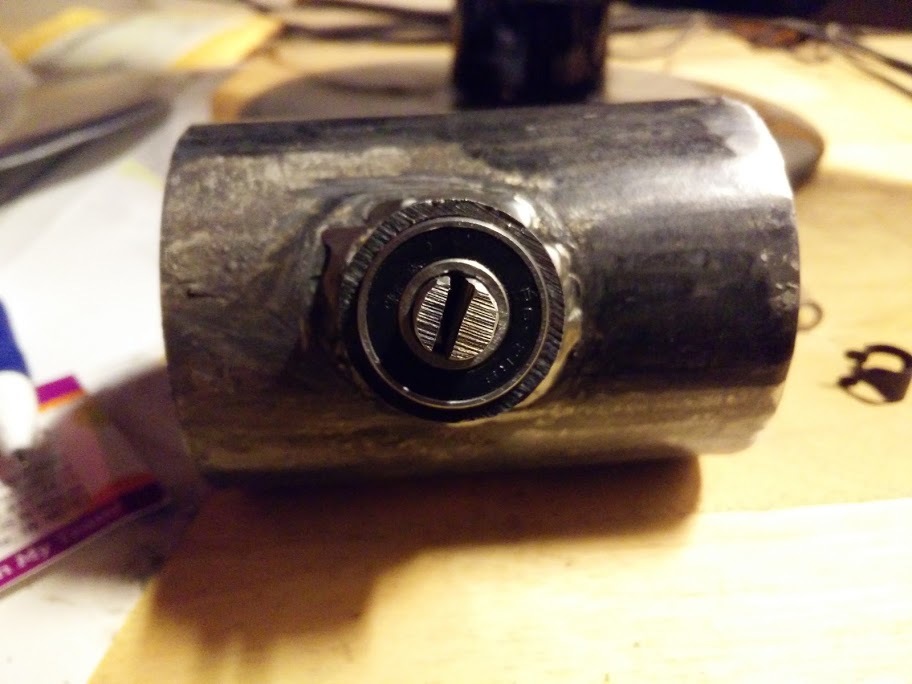

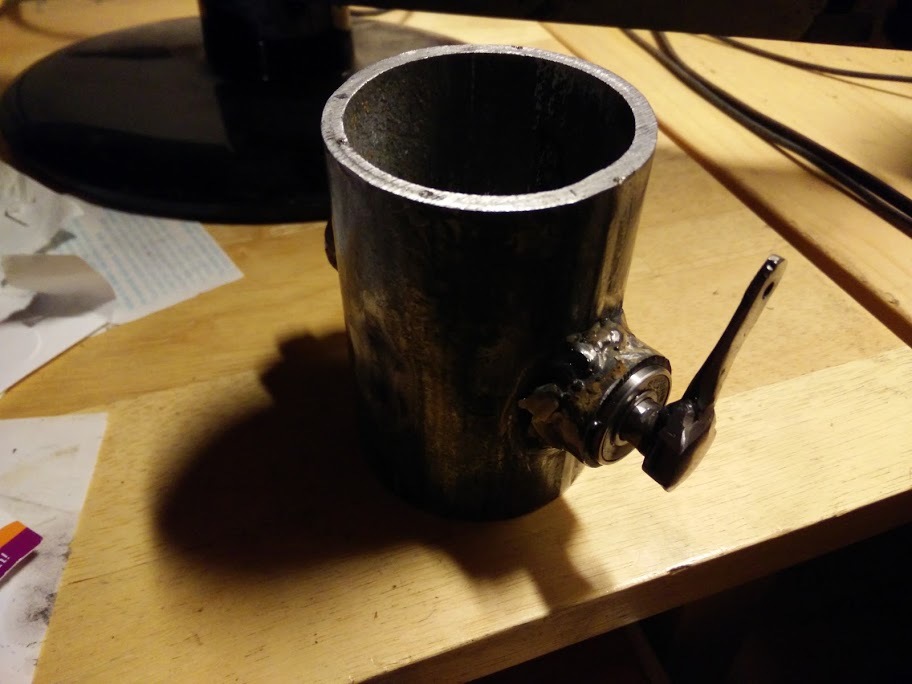

I’m using these bearings:
http://www.ebay.com/itm/121522503770

I have yet to seal up the end of the shaft.

On the bearings, it turns with a medium low friction, about 50 grams required, or 0.1 pounds of force.

4 Likes

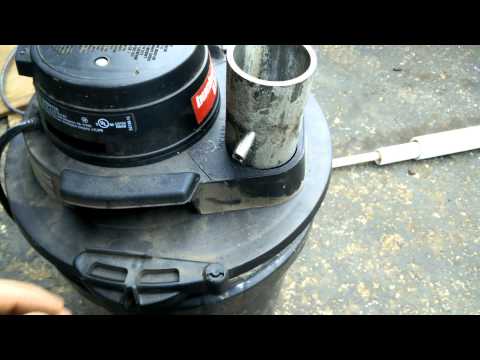

Video showing what I meant by balanced air flap.

2 Likes

Chris,
Nice work on the balanced air valve. I’m living vicariously thru your posts since I am committed to finish a long “honey-do” list of house repairs before I can get back into the shop.
I like Max’s idea of threading the rod and using a nut on each side of the diaphram. A nylon bushing to match the rod will allow easy movement thru the chamber wall.
Good to hear that 16" is overkill. Maybe 10" diameter by 3" deep cake pans will do? Much cheaper. With my jigsaw I can cut two 11 inch diameter washers with 10 inch holes from 1/8" thick aluminum sheet to slip over each pan and rest on the opposing rims/lips. By drilling matching holes thru both washers for bolts and nuts around the perimeter the pans can be securely clamped together. This method works well on my wide and shallow charcoal filter.

1 Like

I would start by tunning the spark plugs. Not saying it’s correct. That’s just me…

It’s all good stuff,

Jeff

Indeed! When the gasproduction and treatment and
controllable delivery are in order…

If I put the gaps in my Audi to wartime 0,3–0,4 mm,
it will have a remarkably “cracking” sound on low idle.
But as soon as the gaps are put to 0,8 mm and higher,
the sound gets soft as harmonious music!
1,0 mm works perfectly from low idle to WOT working uphill.

Then the “clocking” (turning the flag) with the in-streaming
gas-mix improves the acceleration…
Still the 4-point plugs (Bosch) are on the list…

What experience have you lived through, and what’s comming
up next?

Max

The common recommendation that I’ve found on a number of sites for natural gas and propane is about 20% closer plug gap. That seems to work well on CO. I will start listening for the “cracking” sound.
Bruce

Hi, Bruce!

Closer gap, are you (they) refering to gasoline as a starting point?

I have no reference to gasoline, but the reference in the Audi service book, which is not consulted in this matter yet!
The reference to the “wartime” gap was a reality in those days, with weak ignition coils and bad insulation on all hightension cables, bad condensers in the primary circuits, and you name it…
Accumulators dipping the tensions when cranking made it worse.
DC Dynamos could not keep up with the frequent fanning…

Now in the Audi, I made a series of gap settings from 0,3 mm upwards to 1,0 mm, 0,1 mm at a time.

There was still some “cracking” at 0,6 mm.
The refered sound is exhaust sound.
1.0 mm was giving absolute wonderful sound and power results.
All flags “clocked” in “downwind” to the incomming gas-mix stream!

Max

1 Like

Hi Max,
Yes, gap for gasoline as starting point. Nothing beats actual tests with empirical results. Thanks for your test data.
Bruce

1 Like

Hi, Bruce!

Drawing a conclusion from this, seems to be:

The richer (heat value) the fuel-mix has, the smaller the gap is used.

Acheived firefront speed seems unimportant in this comparison…
as long as the compression ratio stays under ~14:1.

Gasoline 0,8 – 0,9 mm / woodgas 1,0 mm.

Max

I guess my progression to the smaller gap suggestion for charcoal gas had a few leaps of logic. I first noticed that old charcoal gasifier instructions recommended .012-.015 spark plug gap, then I came across propane and natural gas instructions recommending a narrower gap. Heat value of propane is twice that of natural gas per volume, but 20% narrower gap is recommended for both fuels. I assumed the spark gap had something to do with gaseous fuel vs atomized fuel. Natural gas has over 3 times the heat value of CO per volume. I assume air fuel ratios figure in here somehow so we should compare stoichiometric mixed fuel per volume not just the heat value of fuel gases per volume. Max, hold my hand and lead me through the heat value spark gap issue comparing gasoline to wood gas to CO. How might compression ratio and modern ignition systems affect optimum spark plug gap?
Bruce

Hi, Bruce!

First, those charcoal instructions have a definite “ring” of wartime accumulators and DC dynamos on 6 Volt…
Low compression ratios, little compression heat, damp gas, if not in Australia… …
Right?
Then, you are on it; it is the heat value of the gas mix and not the fuel heat value as free-burning.
High calorie value gas needs much air, low heat value gas needs less air; this reduces the difference of various gas-mixes.

How about this: The less nitrogen in the mix, the larger the spark gap?

See what you find!

Modern ignition systems have modern maintaining systems to keep accumulators well and alive, less susceptible to dip at cranking and failing.

Max

2 Likes

If you are having trouble sensing the small pressure changes you need and using that “push” to drive a valve:
A $4.00 Arduino Uno, a $10.00 servo and a $14.00 Freescale MPXV7002DP differential pressure sensor will do it easily and reliably.

Pete Stanaitis

3 Likes

you probably also need a roll of aluminum foil to protect everything from electro magnetic interference from the engine.

I would try the MPXV7007DP instead it has a wider pressure range and higher operating temperature range. Plus I think they might have discontinued the 7002, and they are the same price.

It is too bad the silicon diaphragm versions won’t work.:slight_smile:

Yeah you could map the signal to a pot and have full adjustability :smile:

Hi! Pete, Sean, Matt.

Yes, if sensitivity gets you sole! Now a full regulation range within 0.5" WC is good enough for proper and smooth operation. Why then expand the range of service needs with electronic gadgets?
If you start without any electricity available where is the advancement?

By the way, start up does not need any prebalancing for minute intake flows; the twin-flap dispensing makes that with help of the sucking vacuum… INSTANTLY!

Max

Looks great Chris! Those bearings will probably never wear out.

Mr. Max.
I’m trying the mechanical approach first for a couple of reasons but I still believe it will work with the electronics. Without the electronics our engines won’t start anyway.
