Hi, Thierry!
23. of August 2016
The methode to use nozzle groups on different heights in a “firetube” is nothing new; it has been used more than a hundred years ago in stationary plants… for suction-gas motors and other means…
Nothing is new under the sun…
I have very eager to see to what extent the air injection segonaire, happen to crack water and cool the gas
Your experience is very rewarding, thank you for sharing with us
Thierry
We had some suny days so much of the time got dedicated to prepareing hay in the past few days but l did manage to steal some time today for the project. l had an apointment at service to mount a towbar on the Lacetti today at noon and he nearly wuldnt have anything to mount it on. An idiot cut my way while driveing to the mechanic and it was literaly milimeters from disaster, scratched the car a bit
he was lucky to get away before l got out of the car…

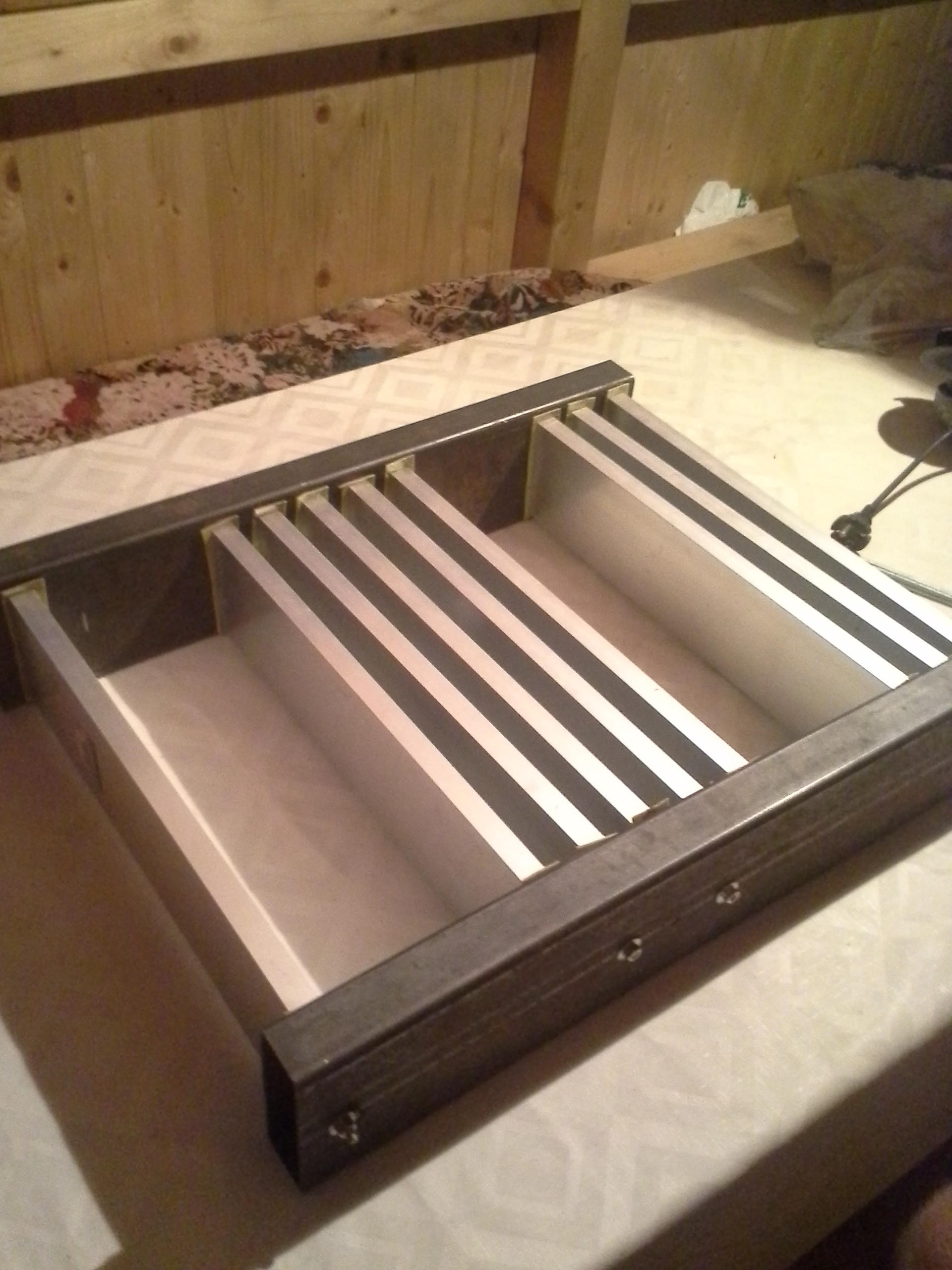

Anyway, the towbar is on an here is some progress;
Interesting! What is the size of that cooler and where are you going to put it? Its going on a sedan, right?
Hi KristijanL. I think you are at least 50% undersized in diameter to get the force and sensitivity that you will need.
This is much discussed with pictures on topic “Vacuum Automixer Project”.
If this link works you will see directly pictures of Dutch John’s dual single action “Mickey Mouse Ears” system that he made up:
If not links search the topic under the magifing glass icon on the top tool bar for comment 22 out of 228.
Pictures of ChrisKY’s controller system build farther down on his topic.
Regards
Steve Unruh
JO this system will be mounted on the towbar.

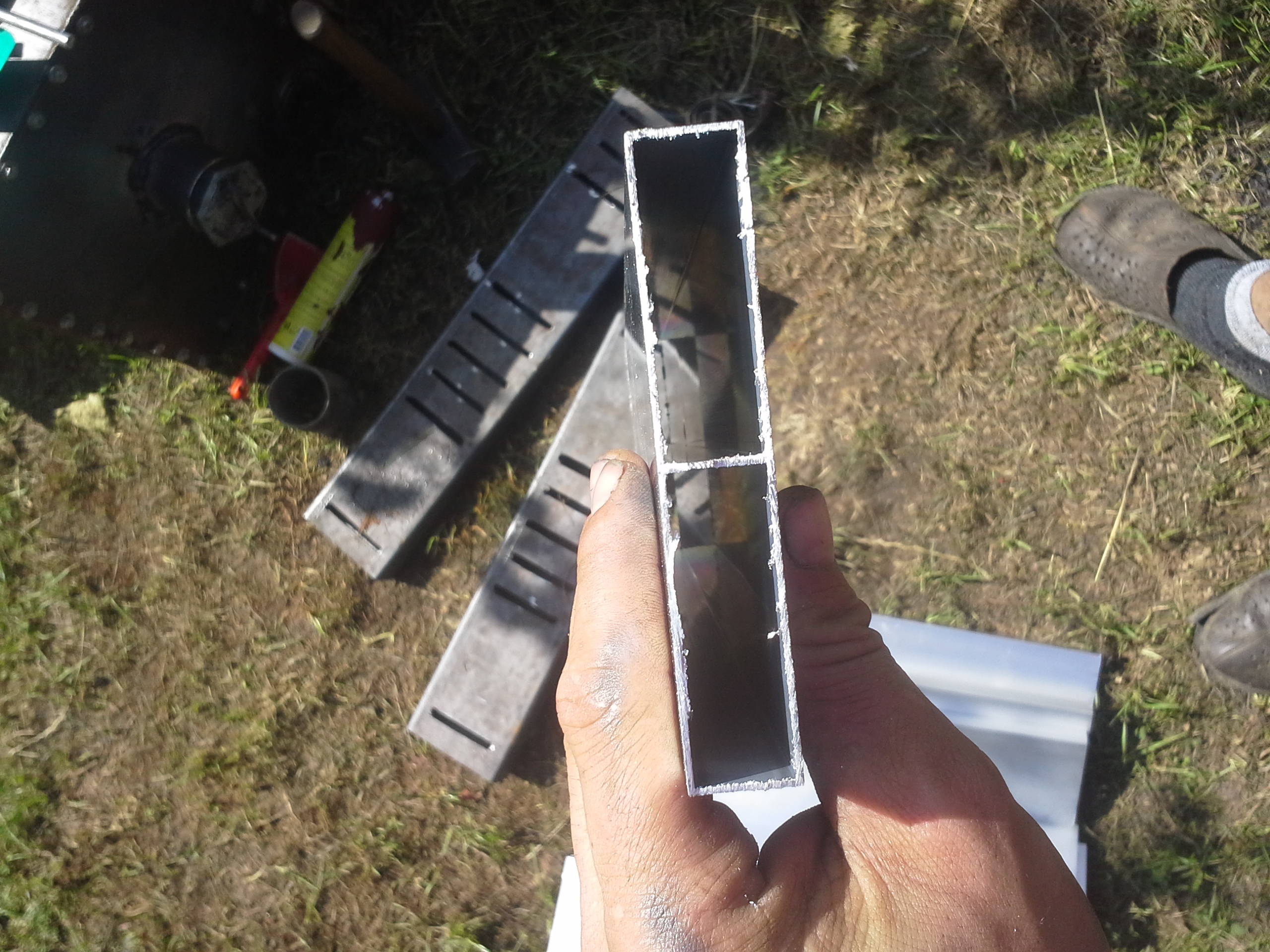

The dimensions are 40x60cm giveing me about 1.5m2 of cooling area. I am now at a total of about 2,5m2 cooling area, hope that will be sufficiant. I am beting on high heat conductivity of aluminium and high speed air comeing from under the car.

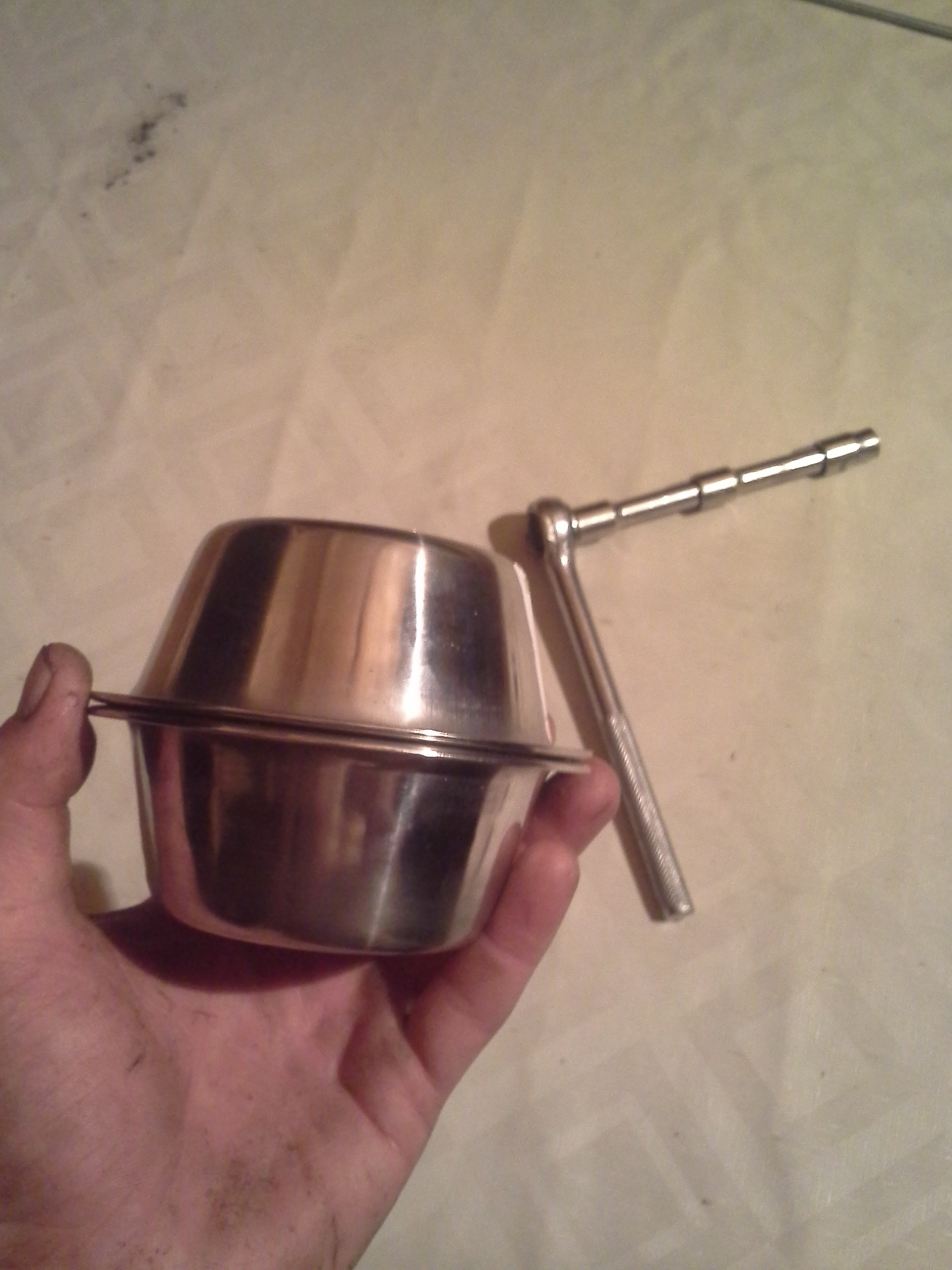

Steve you confirmed my fears. But l only have enough place to put this size under the hood so will try it any way. If it doesent work l still can go with manual control. I calculated the force at 1/2 " h2o pressure difference to be 60 g (2oz) and will use a ball bearing style buterfly (borrowed that one from Chris S, hope you dont mind). Hope thats enough.
Hi Kristijan, yeah I’m pretty sure that’s too small. It will be less powerful, whether it can move the flap at all is in question. Mine with the ball bearings is right at 1/2" WC needed to move it… too close to your max capacity (air leaks, sticky bearings, etc). Ideally you want to be at least a 7" diameter. Mine is 9".
Don’t make the mistake from looking at DJs that the two diaphragms double the power. They do not.
I don’t think they have to be mounted vertical, do they? A horizontal mounting might help find enough room under the hood?
Hi Don,
I am not sure for horisontal mounting butbl think it shuld work.
Tryed my litle automixer today. 1/2" h2o to start moveing it and at 1,5" it is strong enough to move the valve. Do you guys think this is sufficiant?
The valve has almost no friction.
Hi, Kristijan!
25.8.2016
Show the motor room from above, usually a place can be found.
By photos or video.
The piston rod has to be horizontal! Weight unsymmetry cannot be tolerated.

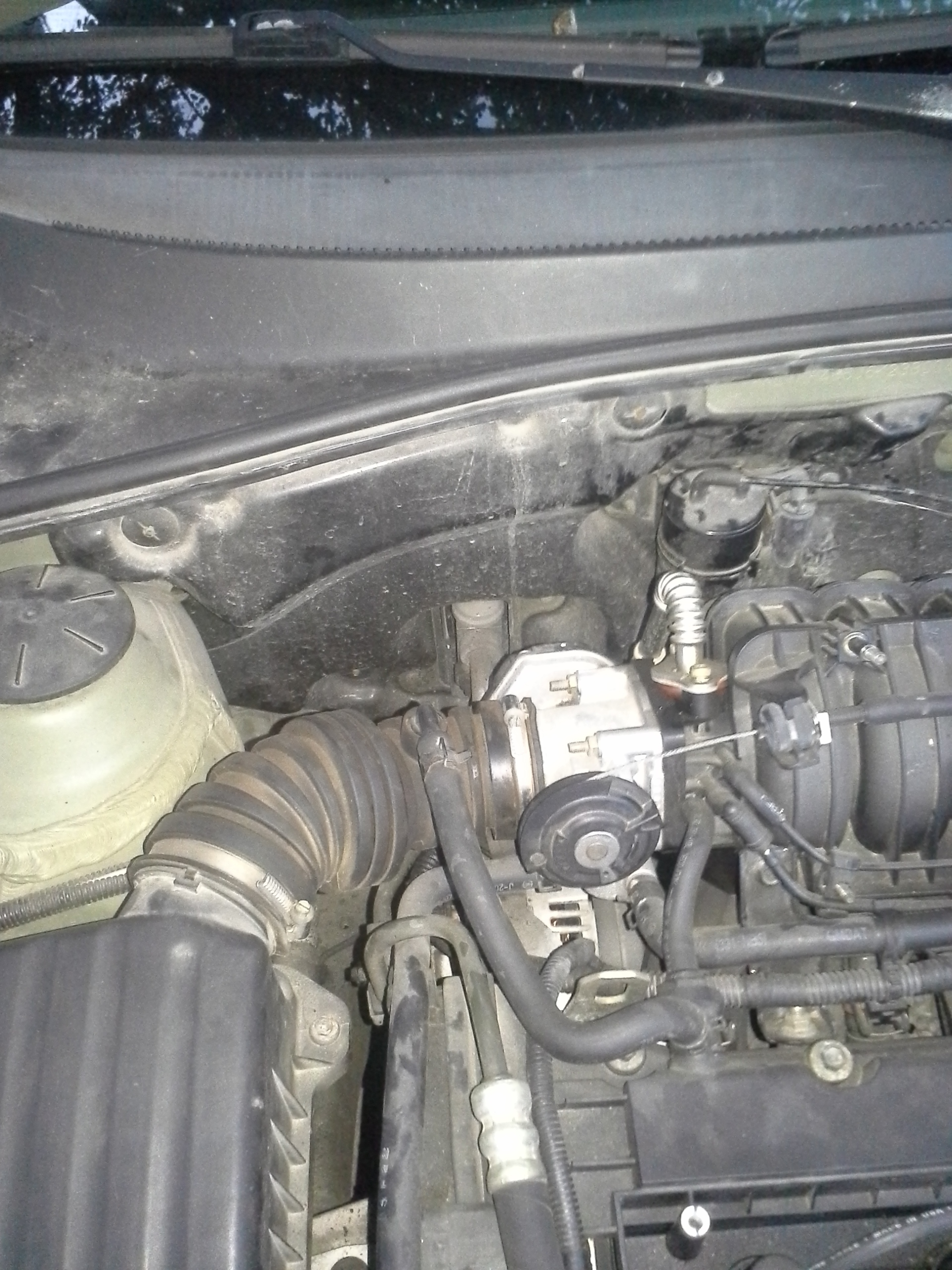

This is the place l plan to put the automixer and all the nessesery things. Behind the big black hose
Hi, Kristijan!
25-8.2016
The pictures show only a little area around the white throttlebody?
Planning needs whole the motorarea overlooked…
The long, black box connected with a rubber “waved” hose to the throttle body is presumedly the paperfilter for intake air.
That is the right side of the motor room?
We need to see more, unseen places don’t “compete”!?
Take a soup plate in your hand when picturing. That is the minimum size that has to be dribbled in somewhere.
A weak spring equal to the weight of the rod for horizontal orientation?
Don, I am not used to get “cheeting proposals” from you!
25. 8.2016
And you meant vertical orientation?
Here is a need for a linear and neutral guiding!
We need to feel the difference between the arriving gases’ pressures…
Let’s see what hidden places are revealed!

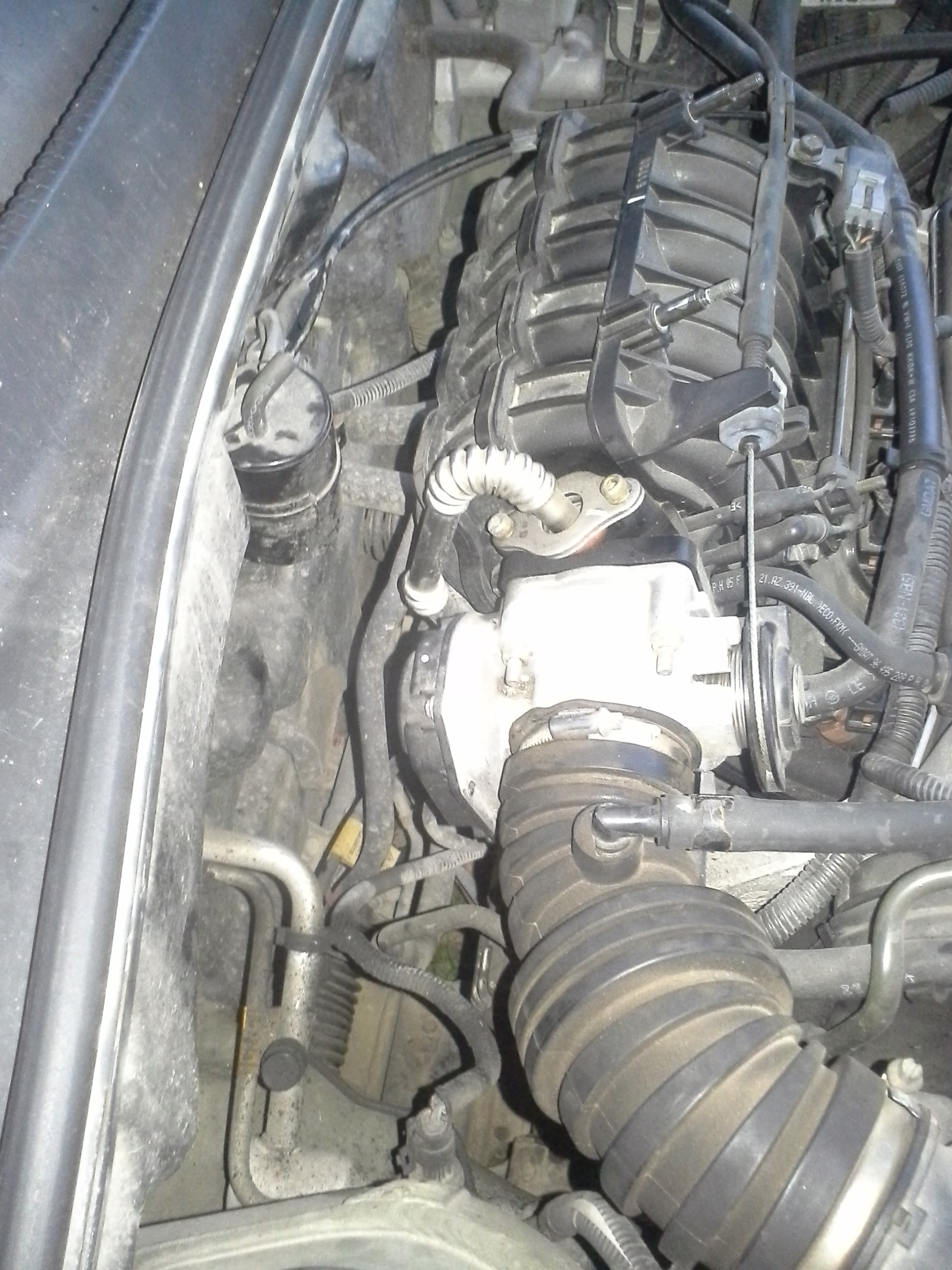

lf you look at the first picture, the box on the left bottom is paperfilter. The white is throtle body (wich l do not intend to touch) and the right black thing is an air intake for each cilinder. I havent yet opend it but the way it looks like the air has to swirl in it so this might be an advantige.
On the left syde of the rubber hose on pic 2 is the only possible place that MIGHT have enough room for an automixer, but all the other things have to come in there allso.
The engine compartment is not wood gas friendly… Lots of thinking.
Fun fun fun
ps; forgot to mention, this will me a hybrid not a 100%woodgas build.
Hi, Kristijan!
25.8.2016
More pictures > more suggestions & questions…
The left side is not yet explored!
The membrane and air valve has not to be near the suspender;
They can be pretty far from each another. The only thing of symmetry, besides the twinflap throats, is that the sampling hoses are taken from the same distance ahead of the double-throats.
Hi Max
this is the left side. The rihjt syde is eaven worse.
What do you mean with twinflap?
HiKristijan!
25.8.2016
I have been talking of th car’s right side and now again of the car’s left side,
not the onlookers right/left .
Twinflaps in twinthroats. The doublethroat carburettor for dispensing equal amounts of “gases”.

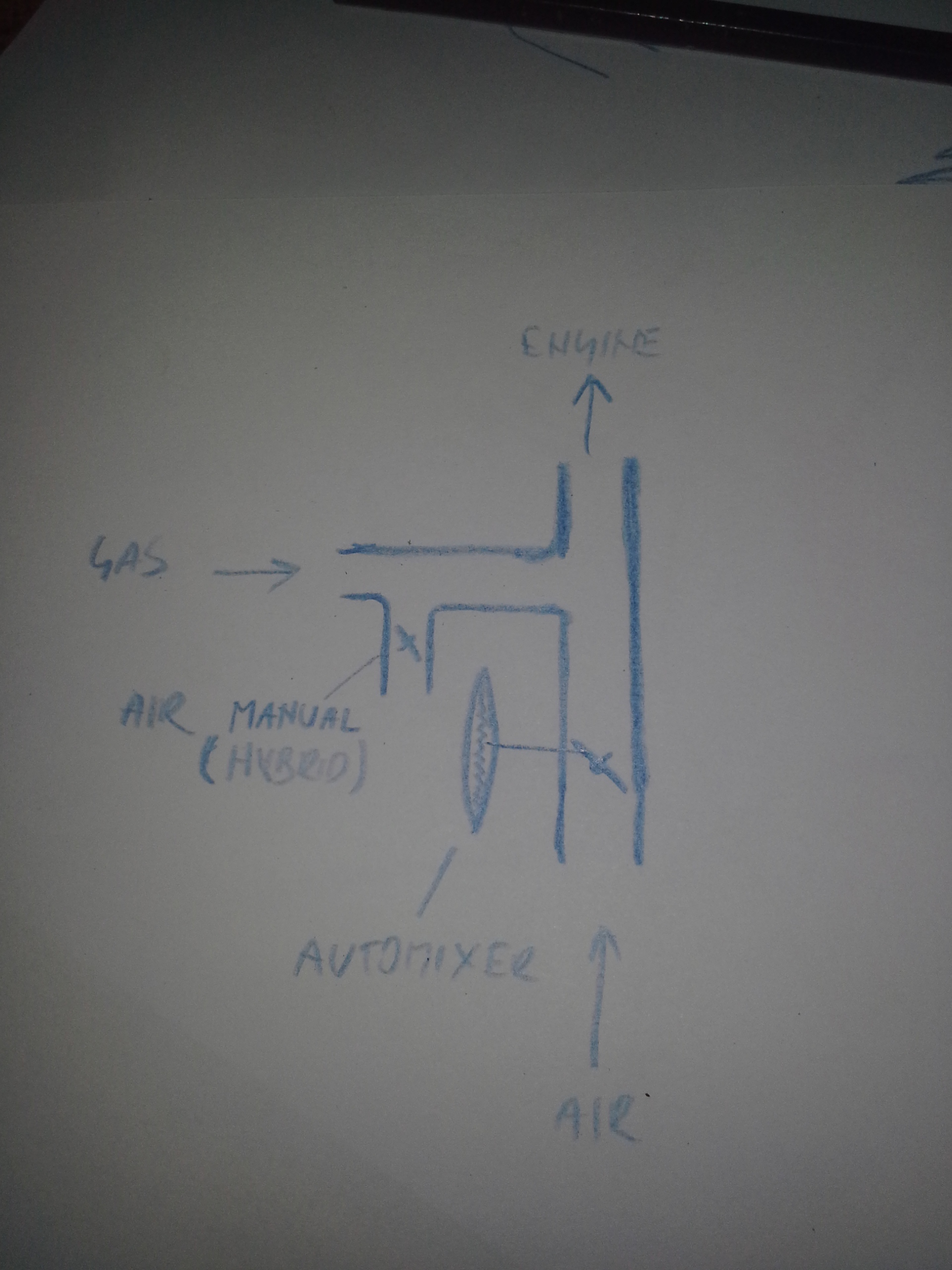

Hi, Krisijan!
25.8.2016
Wrong conception! That gives no equal dispension;
you have not studied Chris’ long construction series!
In fact, you have no twin suspension at all!
If I put in a scheme of it today, you would skip reading Chris’
thorough description?
You will get it later!
