Can someone tell me how to rearrange my photos in order. I posted them in order but they didn’t upload that way and I can’t figure out how to get them in order.I don’t want to make a mess of things.Thanks,
Pepe
Hi Pepe,
They’re just text links in your post. You can move the text around and it will rearrange them. You can also put text in between them.
Hi Chris,
Thanks a lot. I do remember reading they were text. It is a little cumbersome keeping track of where to move them to with all the code, etc. Is there a reason they don’t upload in the original order?
I love the new program, video thing is great! Thanks again.
Pepe
They probably all upload at once, meaning the smallest will go first. If you want to upload them in order the first time, just do one at a time.
Try drag-n-drop too, it’s pretty easy that way. Open the file folder and drag them in one by one. Each one will show up wherever the cursor is when it uploads.
Thanks Chris, I thought the file size affected the order. I’ll try your suggestions. I might even try putting just a caption then the pic under and continue story book like. It’s fun anyway.
Pepe
Hi All,
Moving on to the heatsink flange for the hourglass hearth. I made up a simple compass to layout the heatsink ring on a leftover circle from a previous 1/4" thick flange cutout. Note the original center and layout lines scribed into the original 24" x 24" 1/4" plate steel. I got the ring over the top of the hearth and turned the hearth upside down. I then tapped the ring down to the edge of the hearth. I spot welded the ring to the top of the hearth and gently beat the hearth to conform to the ring. I welded both sides for additional mass. Hopefully this will save the hearth from distortion or melting. See that hearth heat damage in post 315. Use green box in lower right of page and type 315, hit enter, bingo, you’re there. To get back, go to green box and click bottom to get to the last post or enter another post number. Resist using the back button, it will bring you somewhere else. How do I know 13 times now? If that happens, hit your mouse forward button and go to the green box again.
Pepe
I just noticed what appears to be a vertical crack in the weld seam on the upper part of the hearth. The hearth is upside down in pic since I had just tapped the ring down to the edge. I’ll check it out in the morning. Never stop inspecting!
Update- The weld is fine.
The ring forced a pretty good circle out of the edge.
The fit is very good. There is still enough room to add sand as an insulating material between the hearth and the burner shell. It’s an optical illusion that there appears to be no gap at the top of the pic. Also note the gradation of color from top (black tarry) down to the tan (pyrolysis zone) ring 4" or so above the nozzles. I like the temperature driven zone division example.
I’m going to turn my attention back to the grate and remove the solid fence. This will be replaced with a taller heavy screen fence. This comes after reading Jim Mason’s GEK 5.0 revelations. Thanks Jim and team for an amazing “turn” of events. I figured I’d get a similar longer residence, higher fuel density if I had a larger volume of char similar to the grate basket shown here.
I just refound this pic that shows a cast in place grate basket circa 1970. The article is in the History category titled “Early woodgas from Australia”, post 14. Love the post numbering system. Go to Forum, on the upper left side of the screen click on All categories, then click on History scroll to “Early woodgas from Australia” post 14. You can enlarge the picture there for a better view of the “grate basket”.
My basket will take up most of the “H” dimension of 4". Probably 3 1/2" as shown by the cross sectioned grate.
Update- The diameter is 13 1/2". I used a 3" wall. The original wall was 2" so this increased the volume from 286 cubic inches to 429 cubic inches or 50%.
This grate wall will go.
The new grate basket wall will be made from this heavy screen. Since my grate is 13 1/2" I can use a small properly emptied propane tank to heat form the new grate basket.
2 Likes
Is that old grate a cast iron floor drain cover?
1 Like
Hey Pepe,
I like the idea. I have an abnormally long reduction tube and I am experiencing almost no char to speak of after a good run. My grate seems to breath good too with no shaking. I think the char in place helps because my temps leaving the gasifier into my drop box are only around 350 F (temp taken externally on pipe)and my temps in the hearth are 2000 +. I think you will find that your char held in place will give you more gas and less char for cleanout… Just a guess. I can’t wait to see it go! Gordon
1 Like
Hi Bill,
No, it’s a piece of 12" diam 1/4" mild steel I carefully cut slots in. So far it has held OK.
Edit- Sorry Bill, the piece is 13 1/2" to fit into a 100 lb propane tank with a 1/2" space all around.
Pepe
1 Like
Hi Gordon,
I was experiencing quite a bit of over spill of charcoal into the base, that’s why the original 2" solid wall. Carbon that doesn’t make it to carbon monoxide. I’m thinking this is a sure plus. I’m getting anxious for a firing, too. I’ve got several more fixes though and I have to go at them uninterrupted to do the best job. Gordon, how is your temp probe mounted and where in the hearth area. I have a lighting port I thought I could use.
Pepe
Hi Pepe,
I just slide it in the lighting port. Luckily my port is almost a straight shot into my hot spot. I haven’t mounted my thermocouple permanent yet so maybe someone on the site can give a tutorial on the best way. Good to get that job done while it’s apart.
Gordon
1 Like
Hi Guys and Gals,
I continue on from post 361 (aren’t the post numbers great), the grate basket case. This screen is not welded together so when you cut it short the pieces are loose in the weave. Yup, weld all the cut edges to keep the screen intact. I spent over a half hour on the first strip. Shown is my first completed strip and the edge it was cut from. I’ll scavenge the the ragged edge with a cutting disk for links to fill in walls. This screen is from a sand and gravel sifting machine. It is 3/8" squares.
A closeup of the cut edge showing cleaned joints ready to weld.
The cut edge welded up
Closeup of the cut edge welded up. Did you catch the missed weld? Ahh, the QA eye is alive and well.
That’s all the play time I had today. It was time consuming doing the cleaning, but the welding went pretty quickly. Hopefully, I’ll be able to finish this tomorrow.
Pepe
Hi All,

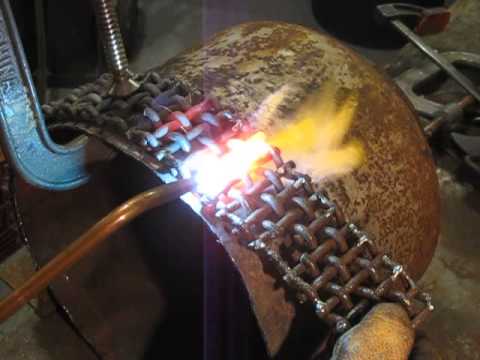

Got into the shop early this morning and finished the grate basket. I lined up and clamped one of the basket side pieces to the propane tank form. Note angle iron “legs”. This was quite a stable platform. Then I heated a section until it wrapped around with just hand pressure. I started at the back edge and worked forward always keeping the flame pointed on the entire heated portion. If you go the other way, you are continually backing up to reheat the spot you moved away from wasting time and gas. Continue working around the full length. I have a 3+ minute real time vid of bending screen section. I’ll post it soon. It’s a MOV file and I’ve never used youtube editor, so it’s bound to be slow, but it will get posted.
Pepe
Update-video as promised:
Place the wall section on the grate floor and line it up keeping the wall just inside the grate edge. Tack weld however many line up at the start.
Heat the section until you can line up a few more points. Tack weld them and continue around to the end of the section.
Start the next wall section. When you get near the end you can cut it for length. Too long, cut more. Too short, fill it with weld. Add lengths of 1/4" round stock to fill in any gaps in screen.
Install grate basket in char base. Update- The diameter is 13 1/2". I used a 3" wall. The original wall was 2" so this increased the char volume of the “basket” from 286 cubic inches to 429 cubic inches or 50%. That’s good, but what I think is significant is the surface area exposed to penetration by the gas. The solid wall had no flow through. The basket wall has 127 square inches, 85 square inches (the area of the solid wall) of which is now available for flow through. I’m convinced that will make a positive difference on the reduction side.
1 Like
Hello Gasifier Enthusiasts,
Today I finished my upgrades on my char base. I made this tool to manually rotate my grate to clear it and any spill over between the basket and the char base wall. I cut a 3/4" section off a deep well socket and welded it to a cutout I made in a piece of 1’2" steel pipe. This is much easier than the vise grips I had clamped to the rod.
The tool is held onto the nut with a small clamp.
The handle has about a 100 degree sweep and is very accessible.
Now I will move on to the firetube and the firetube shell.
Pepe
1 Like
I ran into an ex QA team member and his friend at Lowe’s this week. Had a nice conversation about alt energy and gasification, They alerted me to the stone wool insulation shown here. It says it’s good to 2150 degrees F. A little pricey and a lot of insulation, but it sure looks like a gasifier candidate. I’m going to spring for a package and I’ll show you what it looks like unwrapped. More tech info at roxul.com
I used this in my mini WK. It seems to work well. I now have enough for 5-10 gasifiers.
2 Likes
I was hoping for a confirmation from someone here, thanks Bill. Yes, at least 5-10. I’d better get busy.
1 Like
I used it too Bill and Pepe, both for fire tube housing and gasket material. 1& 1/4 inches around the fire tube housing allows me to hold my hand on the outer housing and rustoleum paint does not burn off. Works good. Wish it came in smaller packages though.
2 Likes
Thanks Don,
I can’t wait to finish these mods, the temp is in the low 40’s and it feels good. I’ll be burning before Oct this year.
