So… just back from Bangkok…
The Royal Forest Department
Ministry of Natural Resources and Environment
The Minister, The Director General, The Deputy Director General… and The Royal Princess…
The Ministry is a fan of our work… ( planning for doing more with wood to energy by gasification)

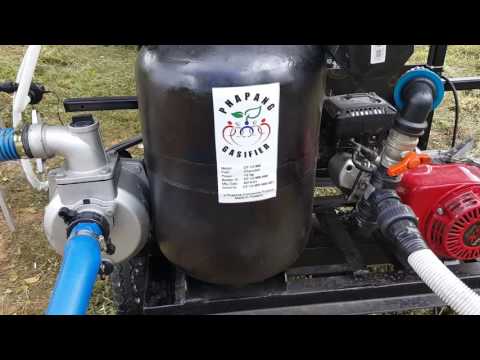

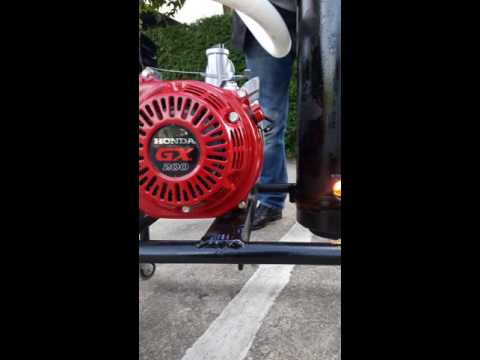

He presented our work to the Princess, made a huge portfolio book, and, as a gift to her project, the set with waterpump…
Gift from the community,
Enjoy the pictures,
The man in Blue is the Minister ( does not look as me, The other in Blue is me, the Lady in Blue is the Princess… ) In white are the high rankings…
Phapang is the name from the village i live here in Thailand, with a great Community named Phapang .
So i dedicated my work towards this community and named the gasifiers also Phapang Gasifier…
Me , trying to speak english…

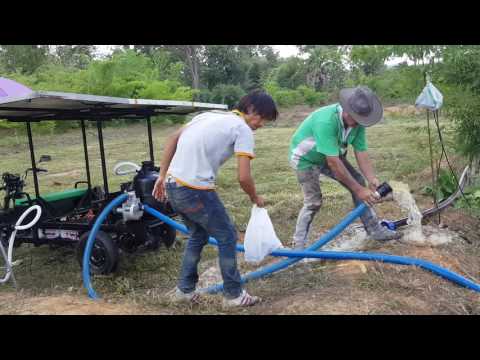

Making ready to test drive the hybrid to go waterpumping on the land.
In preperation for a documentary for the Royal forest department, coming for a show 26 and 27

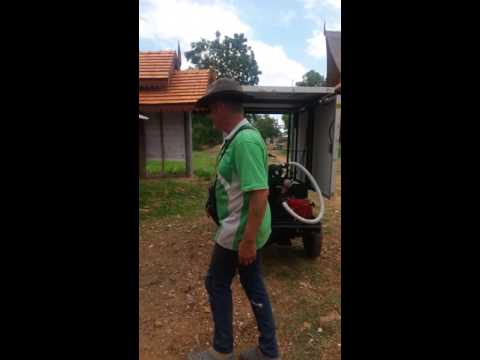

It handles quite well with the generator running to support the load on the battery’s

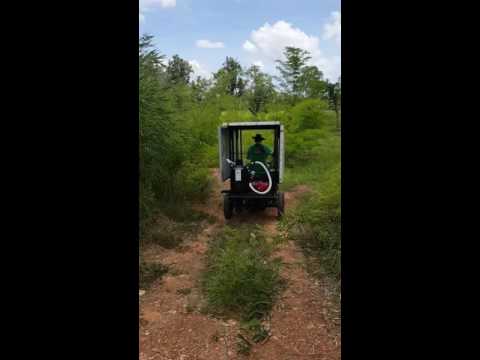

Picked up speed up to 35 Km / hour, flat that is, downhill who knows i can fly with the wings folded open…
Hi Koen
How you handle the voltage of the dc motor, the regulation of battery charge, the steering alternator …
Could you give us a sketch in “principle schematics of renewable energiy …” when you have time?
2: Side view, 2 switches and 1 load adjustment knob ( PWM)
one switch activates the control box electric supply, the other switch then can switch on or off the PWM
Voltage and load read out at the front panel ( only manual control with this box setup, but possible to build an automation ad on module )
3: Inside view of the control box:
Top from left to right:
Amp shunt, voltage regulator for the led meters, amp meter volt meter
Bottom left to right:
Voltage/Amp regulator/limiter for the coil/field to limit /control the alternator
PWM controller to adjust the output from the limiter towards the field coil.
This coil/control is fully disconnected from the main output of the alternator.
The PWM output is connected to the field coil ( brushes if present, in my case is brushless)
The input from the PWM is limited to ensure easy control of that field control
So this limiter reduces the max voltage and the max amps towards the alternator and the PWM regulates then from zero to max ( max from limiter)
