Woodgas VS Steam for stationary generators

Hello!
I am excited to dig into the amazing world of alternitive sustainable heat and power production. I am fascinated with all the potential that woodgas holds.
I live in a verry cold climate (Canada) and have unlimited access to wood from our pastures (mostly white poplar). I currently literally live in my dads comercial Agricultural manufacturing shop with welding and CNC plasma, Laith, powder coating equipment, etc.
I am interested in designing a simple and reliable generator for a future off grid homestead. I would have use for heat and power. Simple low maintenance and bullet proof is my goal. I would like to buld and operate my own sawmil on said future homestead and as an off grid sustainable employment.

I would really love to know if anyone has done a serious comparison of steam vs woodgas systems as far as simplicity and reliability. Especially comparing heat and power produced.

Again, I would have unlimited access to trees for fuel. Remember if my system has excess heat this is not necessarily a downside as I could simply heat more outbuildings, have pamperd livestock, etc.

Thank you for all your input Iā€™m quite new to all this. My one advantage is that I am a verry serious DIYer and have access to many tools.

Thank you all again in advance.

-Brett

3 Likes

Brett, Welcome to DOW. You will find lots of reading and research done on gasifiers on the forum here and in the LIbrary on here. Lot of guys on the forum will help you with your questions. Your available feedstock of wood and itā€™s characteristics as well as the engine displacement you need to run will frame your gasifier requirement. I am in a hardwood area and canā€™t offer suggestions your white poplar which is more like aspen. Several guys on here are familiar with aspen and popple. Soft woods have different burning and ash considerations. There ae a few Canadian members on here that should reach out to you also.

5 Likes

Welcome Brett
I would vote for woodgas over steam for a few reasons.

  1. Engines are already available to run on woodgas whereas steam engines are rare anymore.
  2. High pressure boilers are dangerous and much more inefficient than woodgas generators.
  3. Water cooled woodgas engines can reclaim heat from the exhaust and radiator for extra heat.

One advantage for steam is less processing of the wood fuel for the boiler.
I am sure others will chime in with more opinions.
Don M.

12 Likes

Welcome Brett! I have done a ton of research on steam vs woodgas. Steam was my first love. Unfortunately as Don hinted itā€™s just not very practical.

Thermal efficiency is your main issue. The latent heat of boiling water means that you spend an enormous amount of energy getting the water to become steam, beyond what it takes to simply heat it. That latent heat is only released during condensation, which must happen AFTER you are done using it in the engine. You can reclaim some with heat exchangers but not much. Overall your efficiency will be down around 3-5%. Of course if you have a use for the waste heat itā€™s not nearly as bad. So this will only make sense as a CHP system (combined heat & power).

All that assumes you are capable of building and maintaining two very different machines - a steam engine (expander) and a steam boiler. Engines are simple enough, if you have a full machine shop at your disposal, although depending on the design you can lose or gain efficiency here. The real bear is a good efficient and SAFE boiler. If you simply heat hundreds of gallons of water like an old steam locomotive (water tube boiler) you have built a bomb that you are praying will not ever go off. If you try for a monotube boiler, you have less danger but more complexity and difficulty in controlling it. Solid fuels like wood are not good for monotubes, because they canā€™t be switched on and off quickly. Even if nothing explodes, you are at high risk for extreme scalding and burns from superheated steam.

After thinking through all that, a wood gasifier is pretty attractive. Upwards of 30% thermal efficiency, no explosive potential, 4-stroke engines which are commonly available, cheap solid fuel burned in a controlled on/off fashion. Itā€™s the best of all worlds, in my opinion.

The only real danger here is CO poisoning, we make large amounts of it and you should be very careful not to breathe the gas. I also recommend avoiding fumes from diesel, gasoline, kerosene, and superheated steamā€¦ the point is any energy/fuel source has danger. This one is very manageable with some basic precautions.

16 Likes

Brett welcome to the DOW.

It sounds like you are very well equipped to build whatever you would like .

I have an old welder , torch and hammer but have built a few gasifiers and driven a lot of miles .

I think you should have no problem :blush:

16 Likes

Welcome Brett.

Always glad to see any interest in any kind of alt energy. As you know this is DriveonWood but also power on wood. Many of us just run generators on wood gas and no vehicles. You will not be able to convert your wood fuel to steam and run a vehicle. And there is no real advantage to converting your wood to gas and then using it to heat water to produce steam. However there is something so attractive about steam power that it cannot be totally ignored. Here is a video of a steam car. If you look on youtube Jay leno has several videos about his various steam cars and they are all pretty amazing. Look at the craftsman ship and and style of all the components on this White steam car from 1909. 40HP but up to 800 ft pds of torque. That kind of force is mind boggling. However for your stated purposes, a style of your choice wood gasifier will be your only viable option for self sufficient power. Only way to get enough rpm to produce generated electrical power would be with a turbine and even with your well equipped shop you arenā€™t likely to make one of those. You may have looked around the site enough to see that stationary power gasifiers can be very simple or quite complex depending on your fuel source and how much time and effort you want to put in to keeping one operating. None of them are truly walk away as far as I know other than MattRā€™s commercially produced units. Dave in Australia gets hours of run time from his system and no one else that I can recall has commented much about how long they can run between checking on the operation. I, for instance, normally only run my system when I am working at other things in the vicinity. I feel the need to listen to the engine and know how it is performing. Of course I have not done this long enough to be real confident about what is going on. Also unlike off-gridders I am mostly experimenting with emergency grid down occasions and future no grid conditions. Still you will find your niche as all of us do and we will be glad to help and learn from your efforts in return.

11 Likes

Hey Brett,
I have similar goals to what you describe and have built high efficiency steam expanders with monotube boilers and gasifiers too.
Good advice being given here and great summaries.
The short answer is gasification is the way to go:) And because you say you want, ā€œSimple low maintenance and bullet proof is my goal.ā€, and you have abundant fuel, I would say you want charcoal gasfication.
Iā€™ll repeat what others have said about 'Why Not Steam?";
**no off the shelf expanders available
**no off the shelf mono tube boilers (and you do want monotube for safety)
**no off the shelf stoker burners for biomass (you need a stoker for long run times)
**The Rankine cycle is inherently inefficient compared to Otto because of latent heat AND because of Carnot and steamā€™s low peak temperature
**water freezes

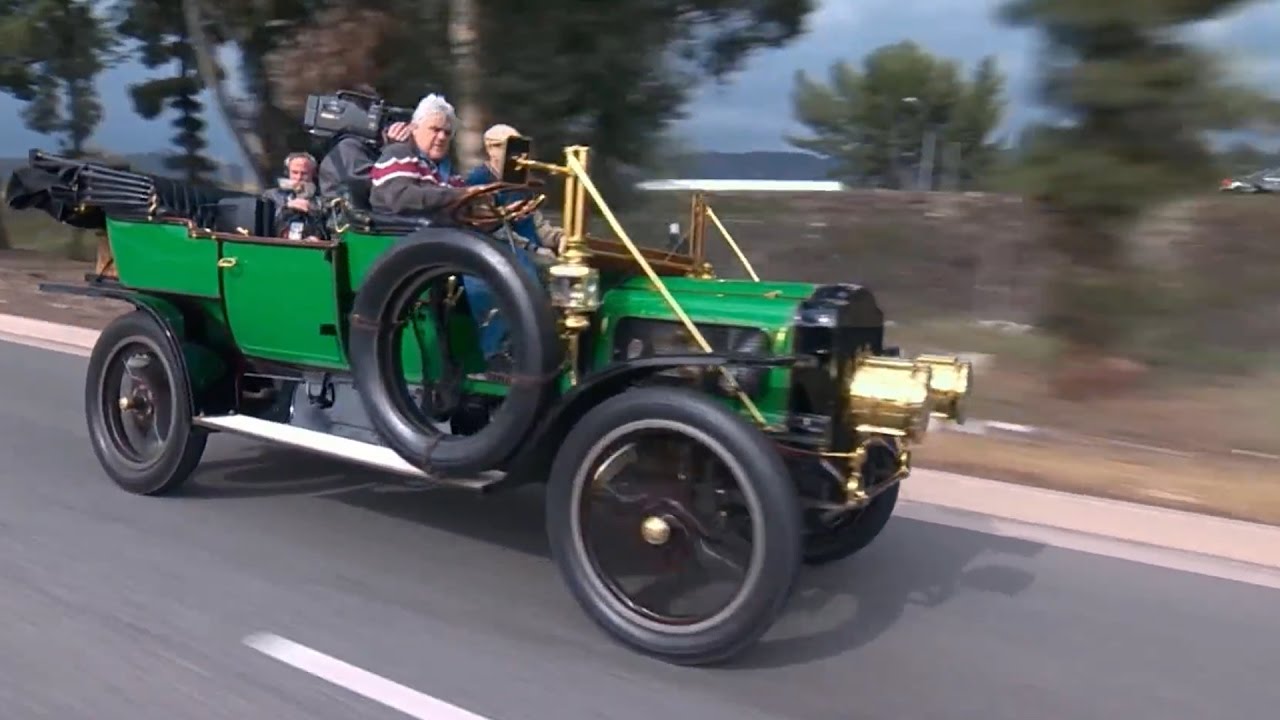

With steam you are looking at developing each one of these subsystems, none of which are trivial. Here is a link to a guy who associates with ā€˜doersā€™ in the steam world and has some good advice; https://tetraconsteambooks.wpcomstaging.com/essay-on-steam-theory/
Here is a short video of two ā€˜bash valveā€™ steam engines I built; https://www.youtube.com/watch?v=MR1qV843awI

With enough time and money, steam could be done with both safety and moderate efficiency, but it doesnā€™t compare to the ease and economy of gasification.
With a little prep work, you could literally buy and assemble a working charcoal system in a long weekend; from charcoal making to a running generator.
There are gaps in the trees to electrons chain but they are not terribly difficult to overcome (charcoal grinders for example).

3 Likes

There are some very experienced wood gassers around here that have a lot more experience than me, but my crude (and always changing) charcoal system has these numbers:
**10 hour unattended reliable run time
**33 gallons of char consumed (1.33 lbs/gallon) in that 10 hours
**40 gallons of hot water produced from the liquid cooled nozzle
**10kwh electric

Fuel making:
**500 gallons of charcoal in a day using the flame cap method
**500 gallons an hour through my 12 inch grinder
**a very dirty operator:)

What is missing for an ideal solution:
**charcoal making stoker furnace to heat dwellings and water that also captures charcoal
**engine optimized for char gas (high compression, slow speed)
**various material handling, dust control, fire safety, and convenience mods

If fuel is abundant and your electrical needs are modest, I think a char gas system can be reasonably practical.
Using the poor quality charcoal I make and the very inefficient engine I run, 1000 gallons of char (which occupies a little more than a 4x4x8 box) would give you 300kwh electric, a lot of domestic hot water, a great deal of space heat if you could capture it, and a lot of room for improvement.
As a benchmark, 300kwh is the annual consumption of a modest refrigerator.

Oh, and Iā€™d guess the all up cost of my ā€˜systemā€™ is less than $4k.
Edit: another example for reference;
A friend lives in a small house with wife and child. They have wood heat and use propane for cooking and hot water. He works from home on the computer a few days a week. They have normal kitchen appliances. They use 260kwh a month for months that they donā€™t run the AC.

10 Likes

Hi Chuck. I am impressed with your numbers. I will have to try your flame cap retort. I cannot make nearly that quantity of char per day. The forty gallons of hot water from your nozzle is also appealing. Even without a large battery bank, anyone should be able to live well on your electrical output. It is good to see data. I have a water heating, space heating, charcoal producing heater I built for my greenhouse that promises to be very efficient. I am hoping it will heat a 600 gallon built in concrete water tank in the GH. I keep losing water out of the tank and havenā€™t located the source yet so I havenā€™t been able to fully test the heater out. Things keep coming up that always seem more pressing. Iā€™ll have to get back on that and post some video.

9 Likes

Lol! Isnā€™t that the way it is?
I havenā€™t found a better way to make large quantities of charcoal than the flame cap method. The biochar folks are pretty good at it.
https://www.google.com/search?q=biochar+kiln&tbm=isch&ved=2ahUKEwijlLTQ0Mr7AhU1HjQIHQ7VA3EQ2-cCegQIABAA&oq=biochar+kiln&gs_lcp=CgNpbWcQAzIFCAAQgAQyBQgAEIAEMgUIABCABDIFCAAQgAQyBQgAEIAEMgYIABAFEB4yBggAEAUQHjIGCAAQBRAeMgYIABAFEB4yBwgAEIAEEBg6BAgjECdQlgxYpBFg0xNoAHAAeACAAZ8BiAHaBJIBAzIuM5gBAKABAaoBC2d3cy13aXotaW1nwAEB&sclient=img&ei=E2OBY-O-MbW80PEPjqqPiAc&bih=545&biw=1236
I donā€™t think the flame cap charcoal will ever compare with the retort made fuel for energy density or conversion ratios, but it is very easy to make and itā€™s naturally open cell so good for other things.
Here is Gary Gilmore explaining it in 2012!
http://forum.driveonwood.com/t/kalle-charcoal-gasifiers/529/6?u=chuckw
Just for example;
Imagine four 55 gallon drums burning brush to charcoalā€¦ fill them up twice and you have about 400 gallons. The rate they fill depends on the size of wood you feed them. If you have small branches, say under an inch, you can fill a 55 gallon drum in under an hour. If you feed them firewood sized pieces it will take a lot longer.
A simple fire ring that is 18 inches high and four feet across will hold over a hundred gallons.
Keep us posted on your char making furnace. That is a piece of the puzzle that would truly be a game changer. Itā€™s not that its hard to do, itā€™s just any burner that is integrated with your house has a lot more safety and convenience demands placed on it.
I have a char making stove I built in my shop that works well. It uses the same principles as other flame cap burners, that is, an elevated edge of some kind that makes it harder for oxygen to penetrate to the bottom. Itā€™s just a wood stove with the floor dropped down 9 inches below the draft inlet (you can make any stove into a char maker using this principle).
shopstove
It has reasonable char conversion and as a bonus will burn huge rounds with reasonable efficiency. But you have to scoop hot char out to capture itā€¦

7 Likes

I too want to do something similar. I would encourage you to look at the thrive offline page here on the forum. I have been impressed with Mattā€™s work and I have talked with Gary Gilmore about his simple gasifier.
kent

2 Likes

Thank you for your input definitely some more things for me to look into!

Thank you very much for responding. Those are definitely some really important considerations for me to mull over.

Thanks for the warm welcome, i really appreciate all the work you have done and how you have worked hard to share your knowledge with the world.

3 Likes

Thanks so much! Ill dig into this for sure!
What kind of generator are you using?
Do you have any pictures of your system?
Just to clarify Is that 10kwh per day?
Thanks again I really appreciate it!

Hey Brett,
Here are some pictures of various gasifier builds of mine. If you cruise around my Youtube channel youā€™ll find random videos of my gasifier stuff.
http://forum.driveonwood.com/t/powdered-charcoal-gasifier/7049/14?u=chuckw
http://forum.driveonwood.com/t/nozzles-for-charcoal-gasifiers-part-2/3639/410?u=chuckw
https://youtu.be/qeUr_e842MI

There are tons of builders around here with a lot more experience than me so be sure to investigate broadly:)
The 10kwh per batch run is my best result from the 55 gallon drum setup. The run time and power produced are directly proportional to the quality of the charcoal. I make the worlds worst charcoal (on purpose) and use the worlds worst generator (for now, on purpose), in order to establish worst case scenarios since one of my use cases is ā€˜zombie apocalypseā€™ prepper thinking.
When I make flame cap charcoal from wet old junk picked up out of the mud I get 1lb per gallon (1/2 inch grind) and the run times are about 8.5 hours using 33 gallons of charcoal with a 1kw load.
When I make flame cap charcoal from better sources, I get 1.3lbs per gallon (1/2 inch grind) and can get 10 hour run times, same 33 gallons and 1kw load.
I havenā€™t tried it yet, but you can safely assume that quality retort made charcoal would yield better results.
The generator is a Chinese 196cc Honda clone, 3600 rpm. No mods of any kind other than plumbing in the char gas. (unless you count an electric drill starter setup)
Not that I recommend such a generator!! Truly worst caseā€¦

1 Like

Here is a nugget of wisdom from @SteveUnruh to consider;

ā€œLooking back at the last 7 years I see the most relevant factor to whether a person will join the one in a million who woodgas for usable engine power isnā€™t their skill as a welder fabricator,
their ability to do the maths,
follow along the thermal-chemical process
It really is predictable by their ability to Source, then Process, and then Maintain a wood fuel pile that will diminish at, at least a 200 pounds a day used-up rate.ā€
http://forum.driveonwood.com/t/are-you-a-one-in-a-million/488/16?u=chuckw

Itā€™s easy to get seduced by the novelty and possibilities of biomass to power (and most of us around here continue to be), but the gritty, dusty, sweaty, reality will weed out the casual observers:)

4 Likes

Wrap your head around at least 200 pounds of fuel a day of gathered, chunked and stored dried wood. Nobody is going to get the 24-7 power they are so accustomed to and take for granted now. As Chuck says, ā€œgritty, dusty, sweaty, reality.ā€ A whole new mind set has to be nurtured. My view is that you may be able to run a power plant six to eight hours a day. Even that seems daunting to me but MattR runs his fab shop at least that long so it must be doable. During those hours you do your major work and with some kind of battery bank you should be able to keep a fridge and lights going for the rest of the time but what happens if you are down with the flu for a few days to a week and canā€™t process that fuel? The food in your fridge and freezer will spoil. If you are using the system for waste heat your pipes may freeze in the winter. I donā€™t think the average person knows how much work it is when they try and separate themselves from the system. Worth it? You bet.

8 Likes

This is why I would pair a chargas generator with solar and batteries. The amount of wood you need to process for a 300-500 kwhr month household is insane, and thatā€™s low for most homes in the US which average 800+ kwhrs.

In the winter when solar power is low you cogen heat and electricity with the chargas. In the summer, no generator except on a second or more rainy day.

The solar and batteries cost a lot more though, at least $5k for 10khrs of battery and panels to charge them.

1 Like

Good description Tom.
Fuel processing, storage, and handling seems key for long term viability. Grappling with those realities will really put things in perspective.
So much of this is without definition, ā€˜how high is upā€™?
I suspect you would define your lifestyle by your available fuel. If you could make and store a thousand gallons of charcoal in a day (a monthā€™s supply at 300kwh, worst case), I think a threshold of convenience would be crossed for me.

@abreaks, I think you are right about layering your power sources. Solar and a battery bank are a no brainer and work well together with biomass. Solar is strong when fire season starts upā€¦ (starts humming ā€œIf I were a rich manā€¦ā€)

It can be hard to think clearly about all the variables with gasification, and even harder to discuss it, as nobody has identical circumstances or goals.

5 Likes
