1976 MGB Charcoal Powered NO DINO new build

[KristijanL (Kristijan Leitinger)]

Bob, perhaps chew the char, wash down with water and pick your teeth with a wood spliter

[ramosedmundo]

Hi Bruce. Thank’s for your compliments but sure your are the BIG piece of this puzzle.
Regarding using my Skizz you are more than welcome. I will greately appreciate if on some little corner it shows that I draw it from Argentina. Some peolple will wonder how come somebody from so far has did it, this will be an opportunity to explain that this a world wide team working thru the web.
I have a last issue: Where the flame arrestor goes exactly??

[ramosedmundo]

Since I had some spare time I decided to start making the PART LIST of this thread.
Bruce, please find attached the list and check it out. Again, your are more than welcome, if you wish, to make any corrections/suggestion to it.
One question: What brand and model is the paper filter cartdrige you use in the filter??
Truly yours.

[Jeff (Jeff Davis (Erie, PA))]

If interested, I would be happy to have you render my producer.

[ramosedmundo]

Hi Jeff.
Sure, how can I help you?
Do you have any pictures, video or sketches to start with?

[Jeff (Jeff Davis (Erie, PA))]

@ramosedmundo

Do you have any pictures, video or sketches to start with?

Air Carbon Fuel Cell

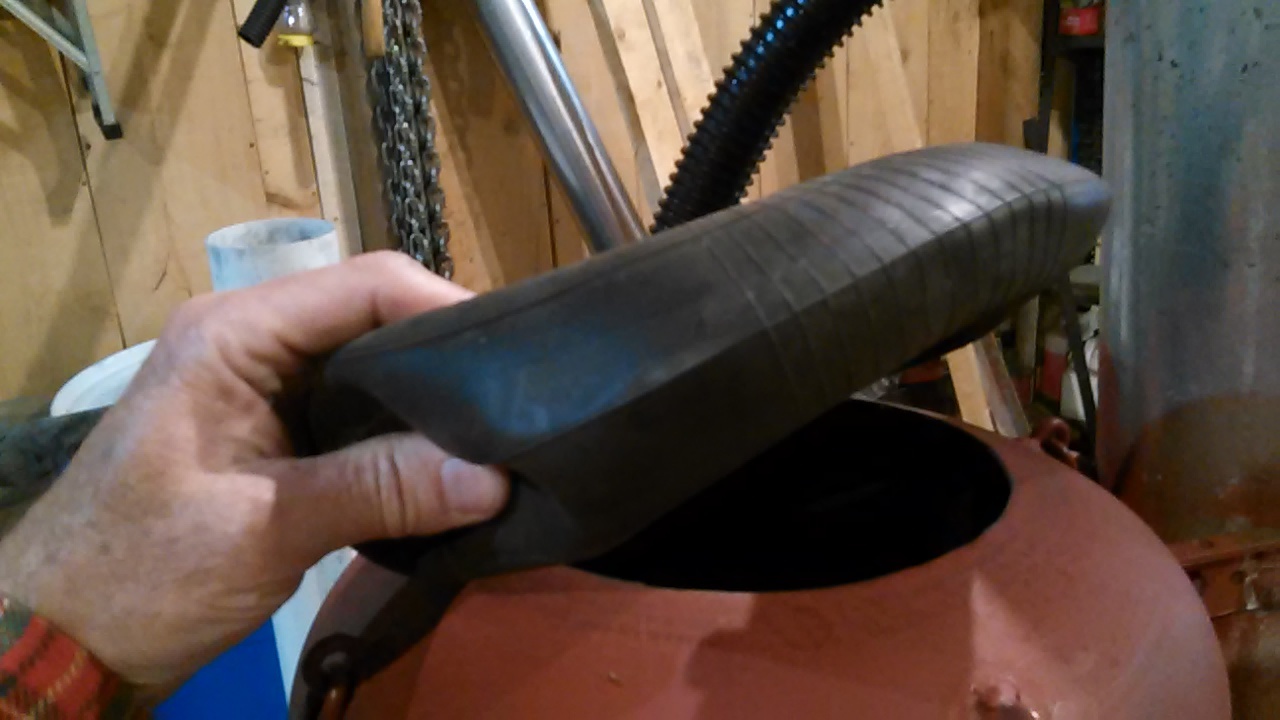

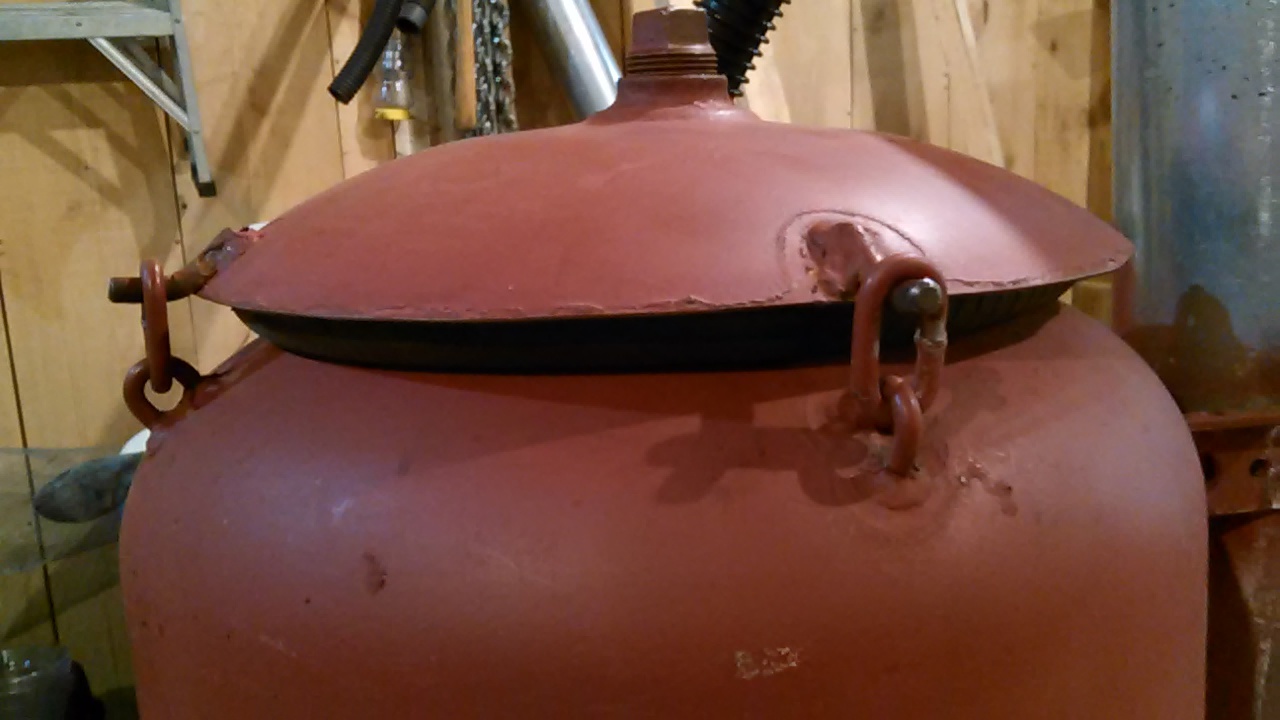

I use an innertube for the hatch seal. I should sand it a bit where the molding lines are on the tube. It acts as a seal and a spring. Not sure if it will puff off or not but it is easy to stick your finger between it and the producer. Without the tube I needed a lid that fit the shape of the tank but with the tube I bet I could use different shapes and sizes. Maybe the part I cut out of the top of the tank. [image] And. [image]

See above for starters. I’m sure more info will be needed but right now it is past my time to “hit the hay”, so to speak.

[bsoutherland (Bruce Southerland)]

Hi Eddy,
I will gladly give you credit for the drawing and give credit to our whole worldwide DOW community for nurturing me toward this end.
I have bronze wool flame arrestors on both air inlets to the nozzle. The one on the bumper side is removable for lighting and cleaning the nozzle. A thin pipe with a misting orifice passes through the bronze wool on the other side.

[ramosedmundo]

Hi Jeff.
Again, I will gradely help you do some sketchs, but I don’t think this is the right topic. Please don’t get me wrong. You should creat your own topic “Jeff’s producer”, where you can upload pictures, videos, hand drawings, part list, comments, etc. Please let me know what you have decided.
Truly yours.
Eddy

[ramosedmundo]

Hi Bruce,
Thank’s for your support. Thank’s for the flame arrestor info.
If your wish, and have the time, please check the part list that I have posted above. I am looking forward to hear your comments.
Truly yours.
Eddy

[bsoutherland (Bruce Southerland)]

Eddy,

I’m checking the dimensions for the items on your parts list and hope to send the (??) details soon .

The filter is a Clarathon threaded filter FC0517 purchased from spadepot.com.

We should also use this spelling: TURBONATOR to find the swirling fan in an online search

[ramosedmundo]

Hi Bruce:
Thanks for your time to do that.
BTW: What size of charcoal you use?,
what is the diameter of the “filling by-pass” hose? and
When is your show? I am thinking to do something special for you, if I find the time to do it. Nothing fancy.
Truly yours.
Eddy

[bsoutherland (Bruce Southerland)]

Eddy,
Charcoal size is 1/4" - 3/4". Bypass hose is 1 1/4" ID which slips over 1" ID steel pipe. Cyclone is 6" X 24". Pipe at top of reactor is 1 1/2". Pipe from cyclone to cooler and on to engine is 2". 2" PVC from filter to near engine compartment, then 2" high temp flexible hose past exhaust pipe to gas mixing chamber. Metal flex pipe for EGR is 1 1/4" ID. Finned cooler pipes are 3/4" copper “baseboard radiant heat” pipes with integral aluminum fins.

I don’t have dates yet for car shows, but none before May.

[Jeff (Jeff Davis (Erie, PA))]

@ramosedmundo

Please don’t get me wrong. You should creat your own topic “Jeff’s producer”, where you can upload pictures, videos, hand drawings, part list, comments, etc.

Hi Eddy,

That is my link where I upload photos, honest. The “Air Carbon Fuel Cell” is my topic, honest.

I have free time this weekend and can answer questions and post photos, if you want.

Cheers,
Jeff
AKA Puffergas

Air Carbon Fuel Cell

Thierry, thanks for the kind words. I’m sure most would find it too small but I can find a lot of jobs for it. Kyle, the old grate has been used in a few versions. Maybe the last three years. One time I put it inside the producer, on top of the refractory, and it glowed red so I put it back where it belongs, outside under the bottom where it can get air cooling and moisture. Plus some ash on top of it from time to time. The new grate is the same idea but more user friendly. The bottom of the t…

[ramosedmundo]

Hi Bruce.
On my name and on the name of other anonymus people I thank you for this info.
I got almost every thing, but sometimes my brain is so numb that I could not figure out your frase “then 2” high temp flexible hose past exhaust pipe to gas mixing chamber". The mixing chamber is the turbonator, or is the “T” that connects the outside air with the EGR and the nozzle inlet?
BTW: I just found out that your engine gives 90 BHP @ 5400 rpm.
B.R.
Eddy

[ramosedmundo]

Hi Bruce.
Almost done, still missing the nozzle dimensions. Plese check the part list for (??).
B.R.
Eddy

[bsoutherland (Bruce Southerland)]

You had it right. Nozzle is 1" ID 1 1/2" OD. Mixing chamber is Turbonator. Gas supply pipe from filter is 2" PVC that runs under the car then changes to 2" high temp flexible hose to go up into the engine compartment and connects to the Turbonator.

[ramosedmundo]

Hi Bruce:
Thank’s for your input.
I am going thru every detail on the final Drawing and Part list, so now I have some (hopefully) last questions:

1. What size is the 3 way valve?
2. What size is the “adjustable from cabin GATE VALVE”?
3. What size is the Mist/arrestor valve?
4. What size is the Check Valve near the intake manifold?
5. Since you have removed the carburator, what are you using as throttle regulator?
   B.R.
   Eddy

[bsoutherland (Bruce Southerland)]

1. 3 way valve is 1"
2. 1 1/4"
3. 1"
4. 2 check valves fabricated from concave freeze plugs with silicone gasket. (probably unnecessary since I have never experienced any intake explosions)
5. throttle body from SATURN/CHEVROLET/OLDSMOBILE 2.2 LITER 4-CYLINDER ENGINE

[gasman (Max Gasman)]

Hi, Kristijan, and the rest of “mixers”!
20.1.2018

It did not take many days for DJ to adapt to tangential swirrel mixing with “sockturning”.

Adopted in his VOLVO with success, but in the chevy pickup unfortunately a big difference in the inlet area to the narrow coaxial swirrel chamber put the ratio almost over board.

He had to fight it with heavy-handed manual control.

[ramosedmundo]

Hi Bruce:
Please check it out.
This supose to be the final Part List.
B.R.
Eddy Ramos
