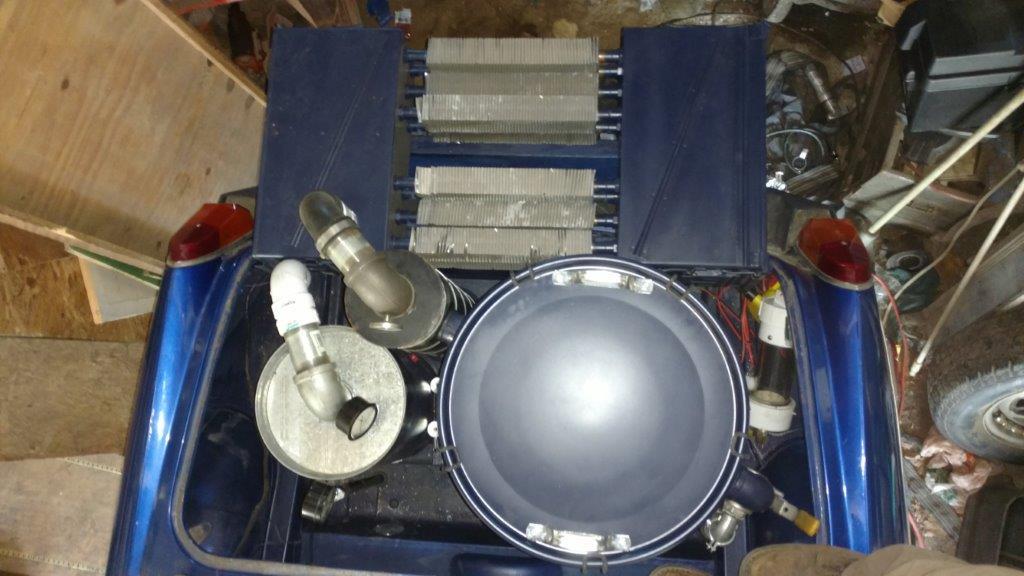

Reactor, flare, cooler/coalescer, cyclone and filter in trunk (‘boot’ if you’re British).

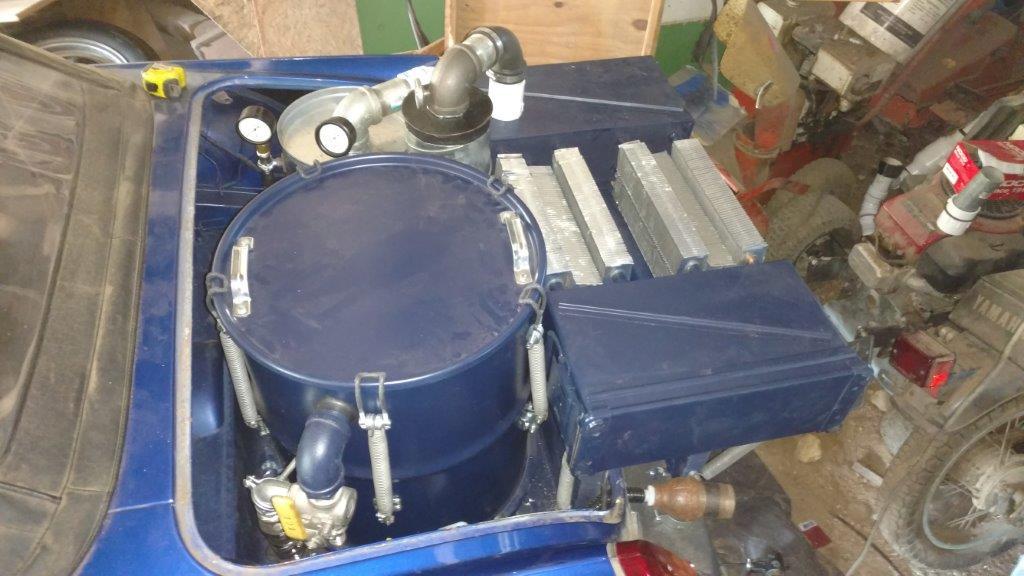

Gas path: reactor to cyclone to cooler coalescer to filter. See a bit of the blower and the coarse flare filter in corner. Street 90 in lower right brings gas from gas mixer to 3-way valve to flare.
5 Likes

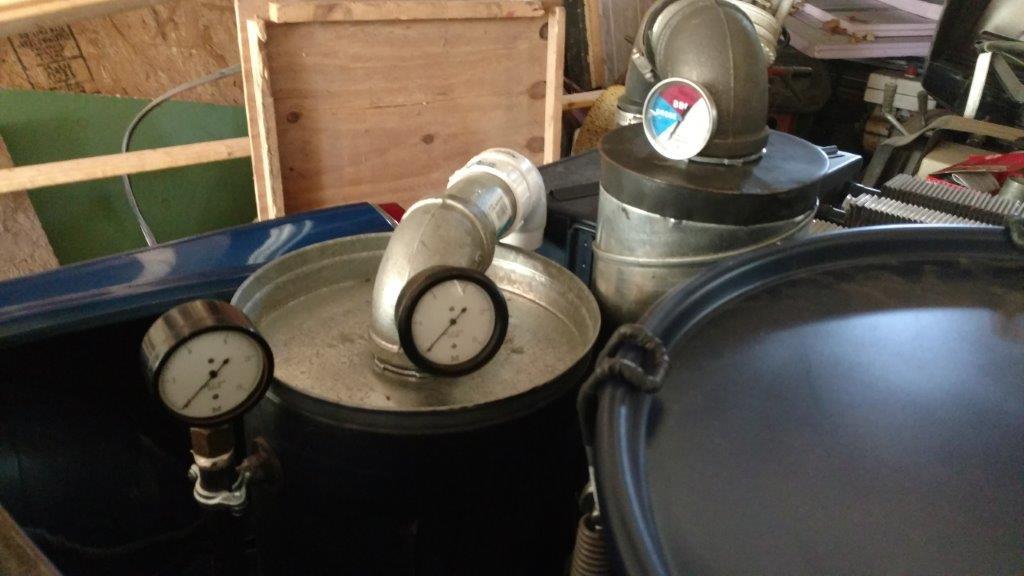

Vacuum gauges before and after filter. Barbeque thermometer on cyclone exit. Gauges visiblein lookback mirror.
5 Likes

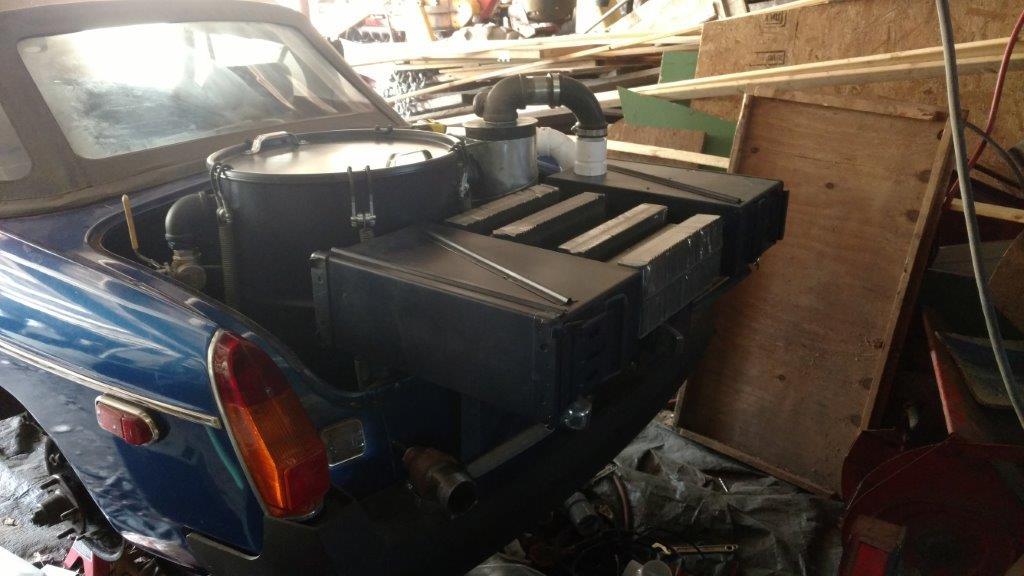

From cyclone gas travels through 5 finned tubes in the cooler/coalescer then back through the other 5 tubes and on to filter.
3 Likes

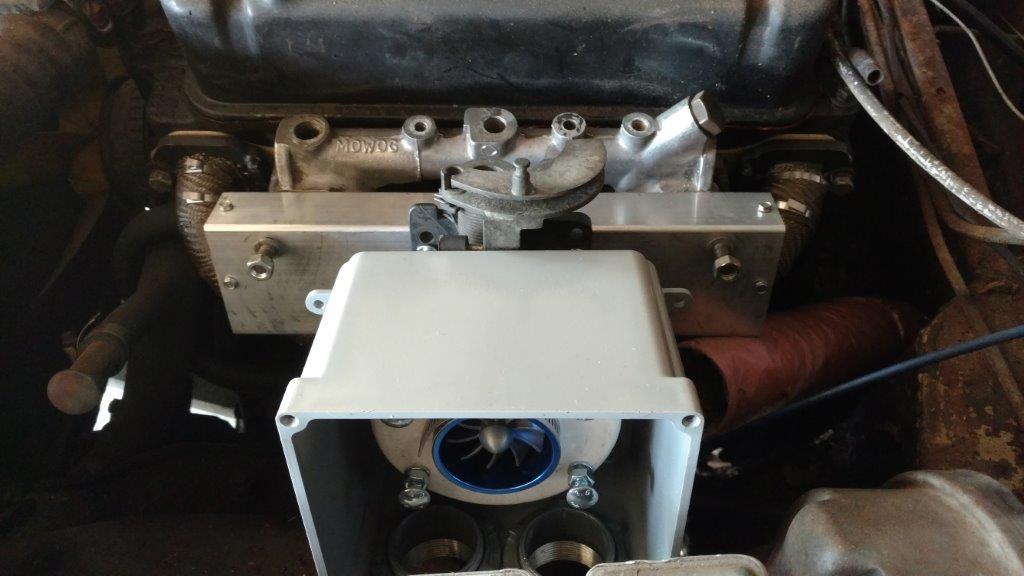

Gas Mixer. High temp gas supply hose visible on right. Air & gas inlets visible at bottom. Turbinator swirls gas and air before passing through throttle. No gas tank or liquid carburetor, straight producer gas.
7 Likes
Very cool Bruce. What are your goals and expectations for this car as far as run times or distances? Do you generally just drive short distances or hour each way trips?
4 Likes
"coalescer - turbinator You got some new terms there Bruce
Nice Job. Could you please change your mind (wife’s) and come to Argos?
3 Likes
Bruce---- very clean job. But really— an MG? One in that good of shape should be worth some bucks. Any way my question. I thought charcoal pretty much cooled the gases before they left the generator unless you were low on charcoal. I’m sure the cyclone is for dust collection, but they also are good at taking heat out of the gas. Then you have a cooler besides. What is your thinking or am I wrong about the charcoal cooling the gas? TomC
3 Likes
Ok I know how small MGB s are,and the trunk or boot size.
( One of my FAVORITE CARS!
This looks very COOL ! !
Jesse
2 Likes
Good job, Bruce. That piece of art should give you a 50/50 weight balance on that car. You know that somebody is going to ask you where you bought it from.
2 Likes
Jim,
I expect to get 3 miles to a gallon of charcoal. I’m hoping 20 gallons of the 30 gallon reactor barrel is usable giving me 60 miles. I plan to carry another 20 gallons on board so i can drive to the beach (50 miles) and get home again.
1 Like
My wife was right. A week after she questioned my Argos plan, the lower support arm on my van rusted through and broke. The frame looks like swiss cheese. So now I’m resurrecting my '87 Toyota pickup which was wrecked last year. Totaled, but I bought it back from the insurance Co. Sadly no argos this year.
I’m calling it a cooler/coalescer because its purpose is to remove moisture by passing cool gas through SS scouring pads. I want water and any tars to coalesce and drop out before reaching my filter. At least that is the theory.
3 Likes

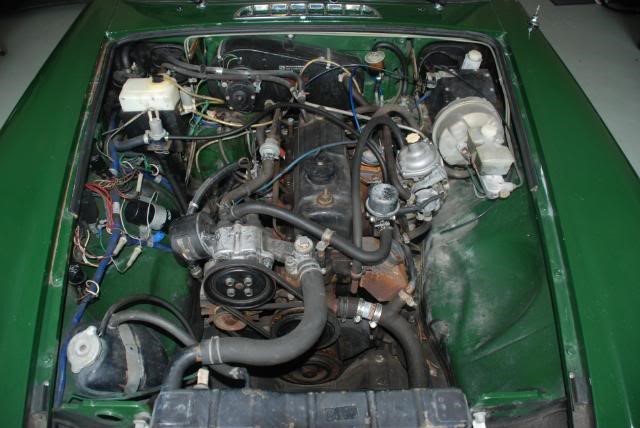

This MG was given to me. No rust, but a few other issues. A friend from church bought it 13 years ago and never got around to fixing it up. I put the new rag on, rear wheel cylinders, rear tranny seal, seat covers and welded the exhaust manifold. I had it running, but the 1976 was puny because of all the smog controls. Since it was a gift, I can’t sell it. It is just for showing off on nice days. Why not make it doubly interesting by gasifying? Here is a picture of a 1976 MGB engine compartment. Mine is now clean after removing all of the nonsense.
4 Likes
Older MGs with this same 1800cc engine produced 90 HP on gasoline. In 1976 the smog stuff choked it down to only 60 HP. With the new intake manifold and exhaust header pipe I’m hoping for about 45-50 HP on CO with a top speed of 50 or so.
3 Likes
Bruce what can I say other than , its bloody marvellous and a real credit to your charcoal build skills .
I for one cannot wait to see and hear this little lady driving around the streets , so you best start training the wife on her camcorder skills .
A classic British car with stunning boot arrangement .
Well done
Ex pat Dave
3 Likes
Bruce - Awesome looking build. Very neat. Keep us posted.
Thanks Dave. I still have a lot more work to do on this before she runs. I probably won’t have a drive video until next month. I can hardly wait to go cruising with the top down.
Take a look at the cyclone. Notice anything funny about how the inlet?
