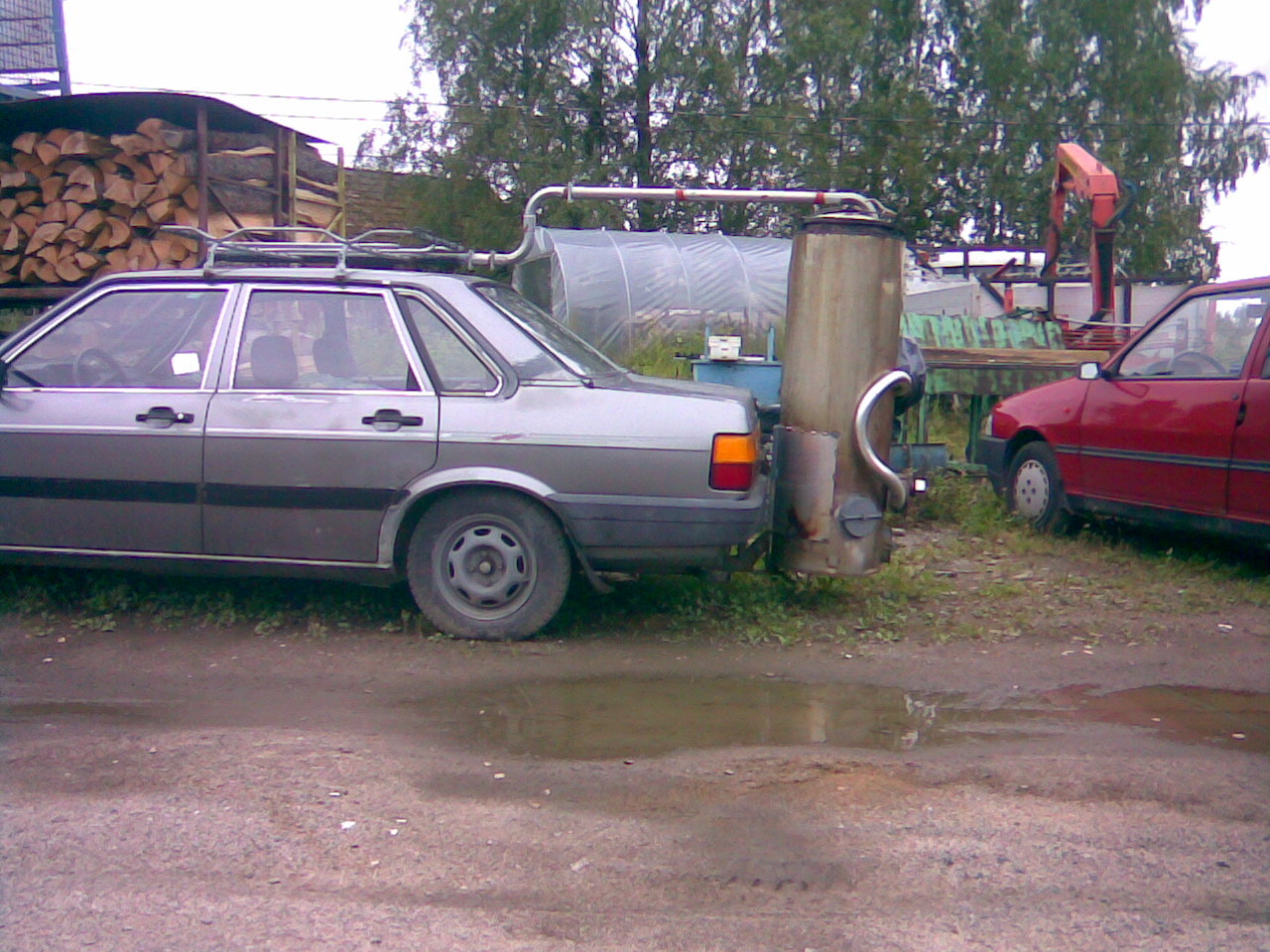

1986 Audi 80 did have almost none electronics “complicating” the woodgas application.
The “gasgenerator” is almost a cold air Imbert GMR / two throats.
4 nozzles, DI = 8,5 mm, tip-circle 160 mm, space-ceramic restriction, upper hearth D = 210 mm, same cylinder reaches below the restriction and forms a cylindrical “bell”.
About 50 mm below the bell-edge, is a flat hole-punched sieve plate with full diameter.
The upper hearth volume is only ~5% of the 1,8 l 3,500 RPM gas consumtion/s.
The ample “natural” char & ash insulation around and below the hearth keeps the idle at ~800 RPM for 10 – 15 minutes before it starts declining. But tramping the gaspedal for 15 seconds, brings it up to “hot performance” again.
Longer than 1/2 hour idles need light stoking of the lower silo to clear bridges before a take-off.
Fuel = 2 X cigarett boxes (flat on each other) or a single,
a half cigarett box, and for road performance egg size.
So far, motorway (main road) speed 110 km/h.
Ash cleaning at ~700 – 1000 km intervals.
First cleaning by a cyclone. Start-up with 2 in-series blowing centrifugal ventilators.
Nice to see your build! It looks like you have lots of km in that hopper.

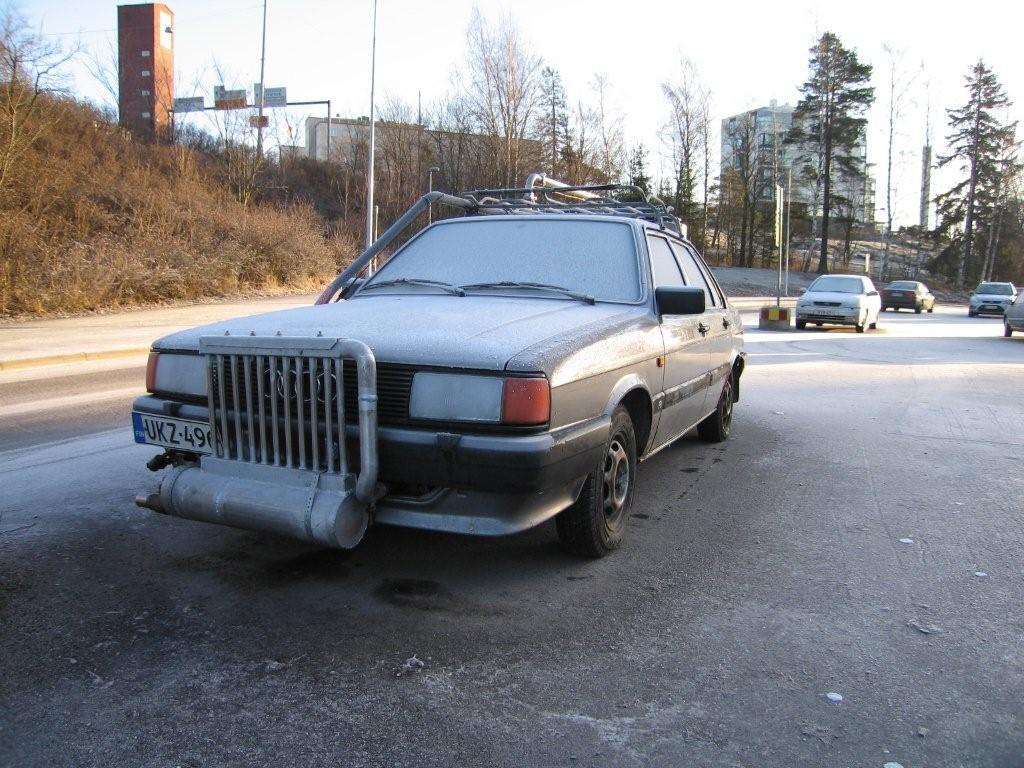

I like the on the roof cooler.
How come you only use 4 primary air nozzles?
You have a fixed grate on there?
JO, looks like you have found a ideal engine for woodgas. The 0-100% petrol realy helps you. With my type of fuel injection l always consume some petrol as long as the lambda shows less thain 0,5v. But l have found the amount is realy small at WOT, but quite considerable at low throtle position. This is the reason l hate city driveing.
I am orientateing on the lambda for the A/F ratio. I think you culd too, but the real question is do you need to?

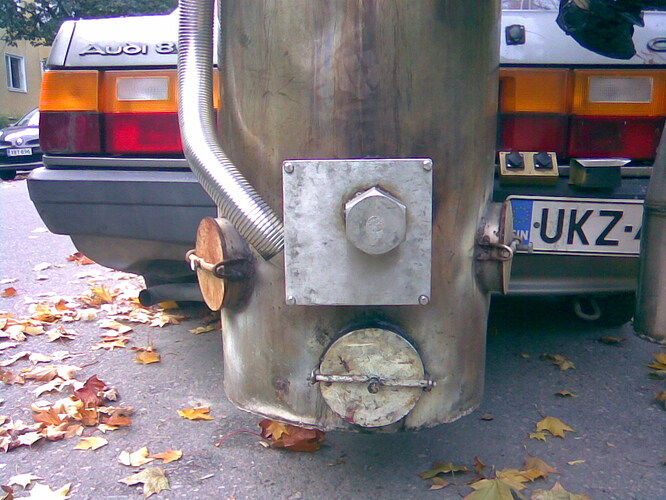

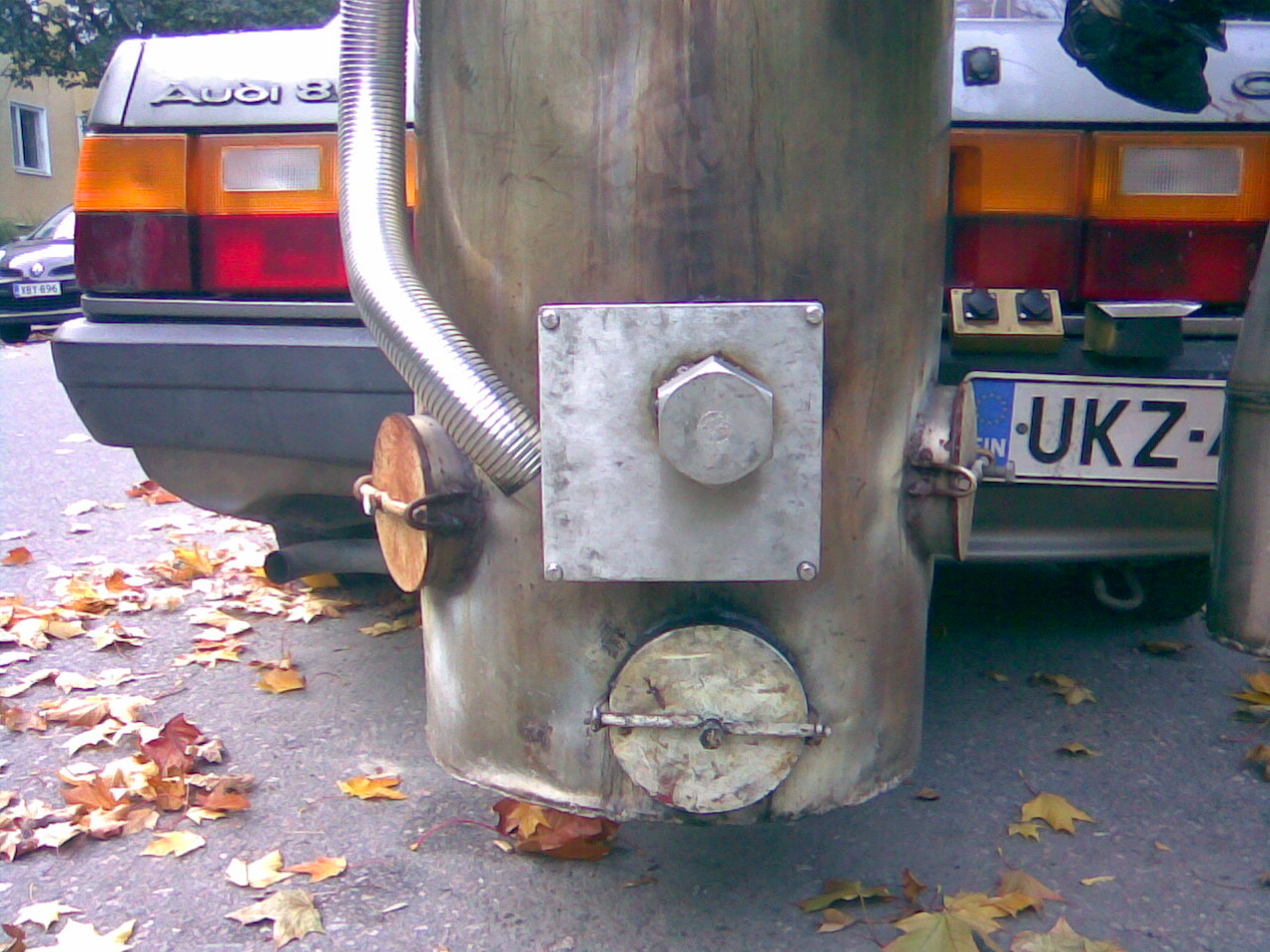

Max ,thank you for the additional pictures. I see your air intake and ash dump. The two large ports on the sides, are they for grate and nozzle service ? Your gas must be pretty cool by time it enters the engine compartment, is it reheated there before going to your cooler out front ? Do you have a condensate catchment on your hopper? or cyclone ? or nothing till at cooler in front? Sorry for so many questions all at once but I have been wanting to see your set up for a long time . Thank you.
By no means! After the cooler there is a “bucket” in the motor compartment with 3 open cell disks, but they are far too small, D = 250 mm; that is why I have a 1000 x 500 X 200 mm
~40" X 20" X 8" kitchen-sink waiting to be installed on the roof (after a cyclone and new tube-cooler) with 2 X matress open-cell layers.
Too small filter area makes soot blow through!
The original installation had no cyclone and no proper condense tank under the cooler… no stationary blower … no “social box” with back-flap and ignition grill.
You could not open the trunk-lid more than the half-ways…
I put in the cyclone and rised the delivery-tube with a “knee” over the fully open trunk-lid…
Hi, Jim!
9. of December 2016

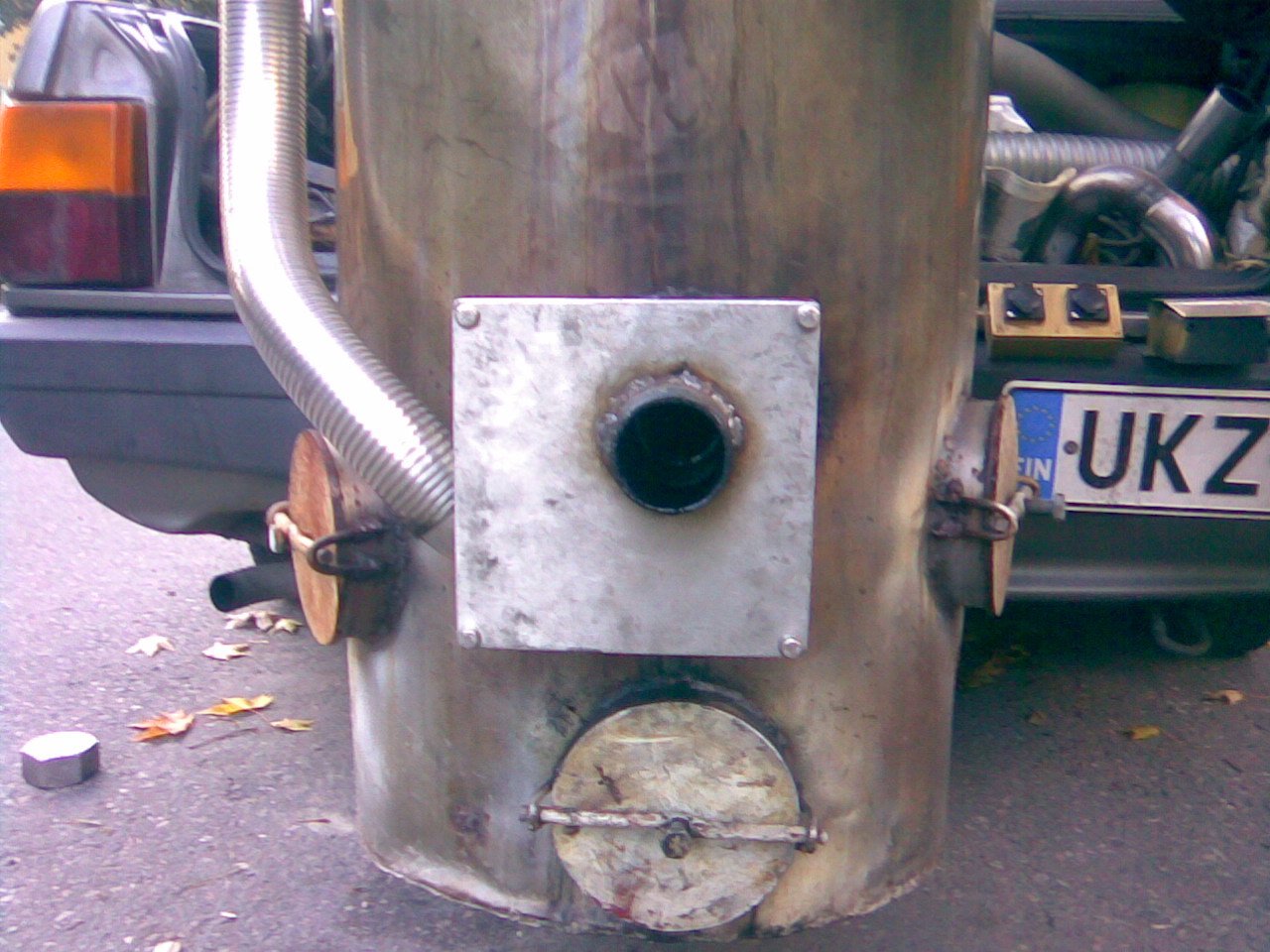

The two side lids are reaching outside the heart lower part and to the sieve level. (qvasi-grate). Not to nozzles.
There is no gas reheating, constantly decreasing temperature and saturated dampness after the cooler, filterdisks are wet.
The cyclon and delivery line keeps hot enough.
Open-cell foam does not freeze solid, fluffy as ice-cold.
Extra down drainage from the filter bucket.
The silo is mantel-heated in Imbert 1926 and consequent 1931 GMR or 1944 FSD style by the exiting gas.
All fuel humidity has to pass the hearth; therefore the tight and “furious” measures! The reduction and insulation char is ample. Needing a manually sieving grate later.
Later, when roof-filtering, return to gasifier extra mantel for reheating and heated paperfilter.
Max, I stumbeled over that video before on youtube but never realised that was you an your car.

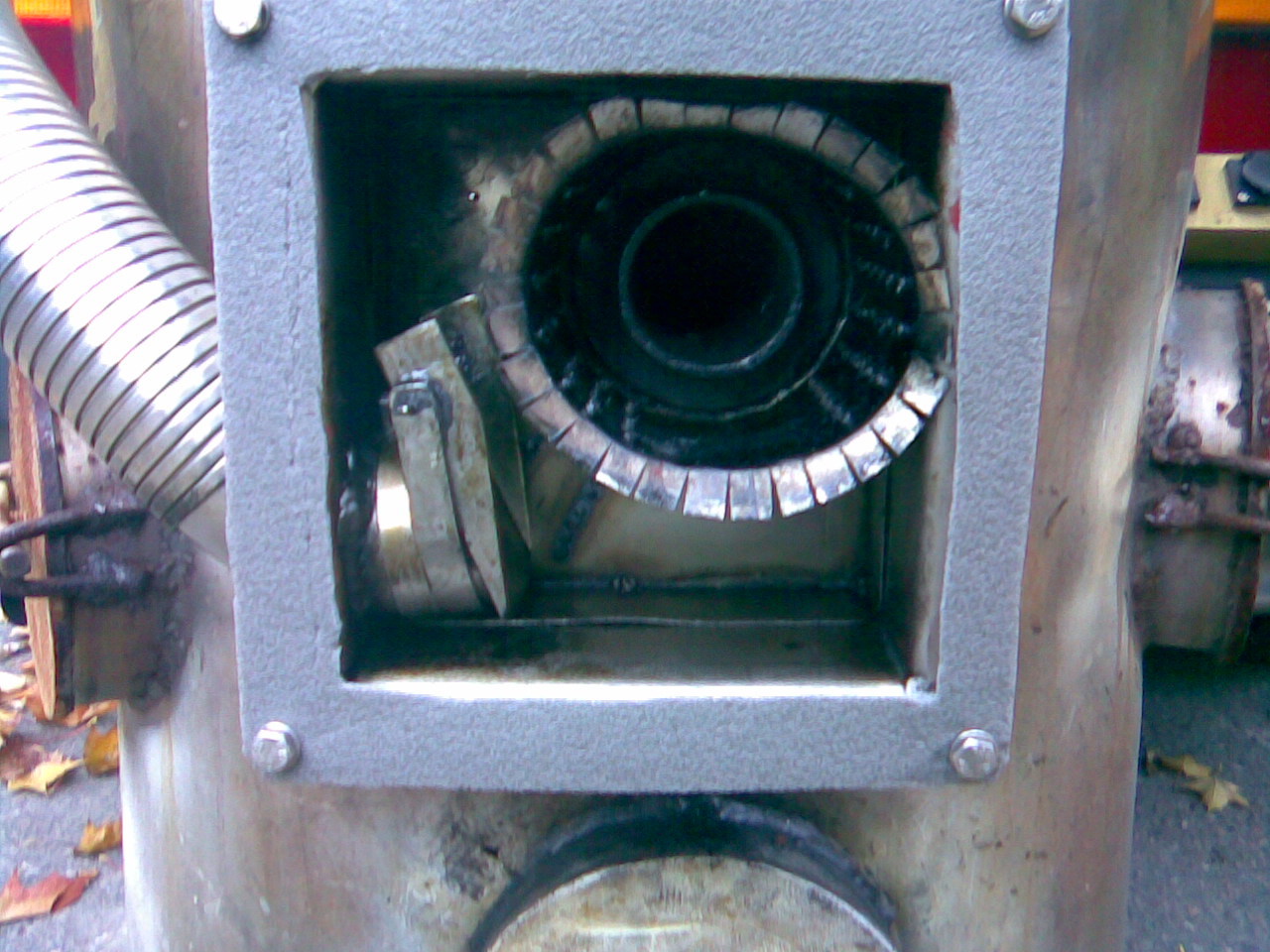

I’m curious too: Your gas outlet his high - do you heat the wood old Imbert style? What about hopper condensation? What’s the purpose of those fingers in the air tick-tack valve compartment?
Nearly all Imbert types are double-manteled, so all fuel humidity has to pass a furious hearth! This one too…
The flap-side-edges are bent 90 degrees (vertical line) to make it immune to bending; at the same time the upper ends of the bends have drilled holes for a thin (1mm) hindgeing pin.
You see a little blank point, that’s the end of the pin!
Around the incomming 60 degree curved bend, there is a “spanner-band”;
the left part of it has a spanner-screw (partly hidden), uppermost high.
The right part of the spannerband is split from the rest at “midship” hight of the 60 degree tube, facing straight upwards.
These upwards facing “struts” have corresponding 1 mm holes drilled in the upper end.
Syncing with the flap holes.
The 1mm pin connects the struts and the flap-side-bends.
The flap is 0,5 mm SS sheet, light and tight. Everything else is also SS.

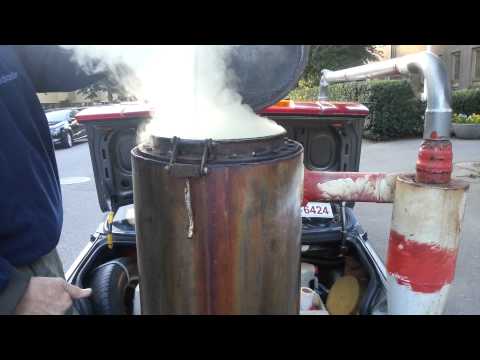

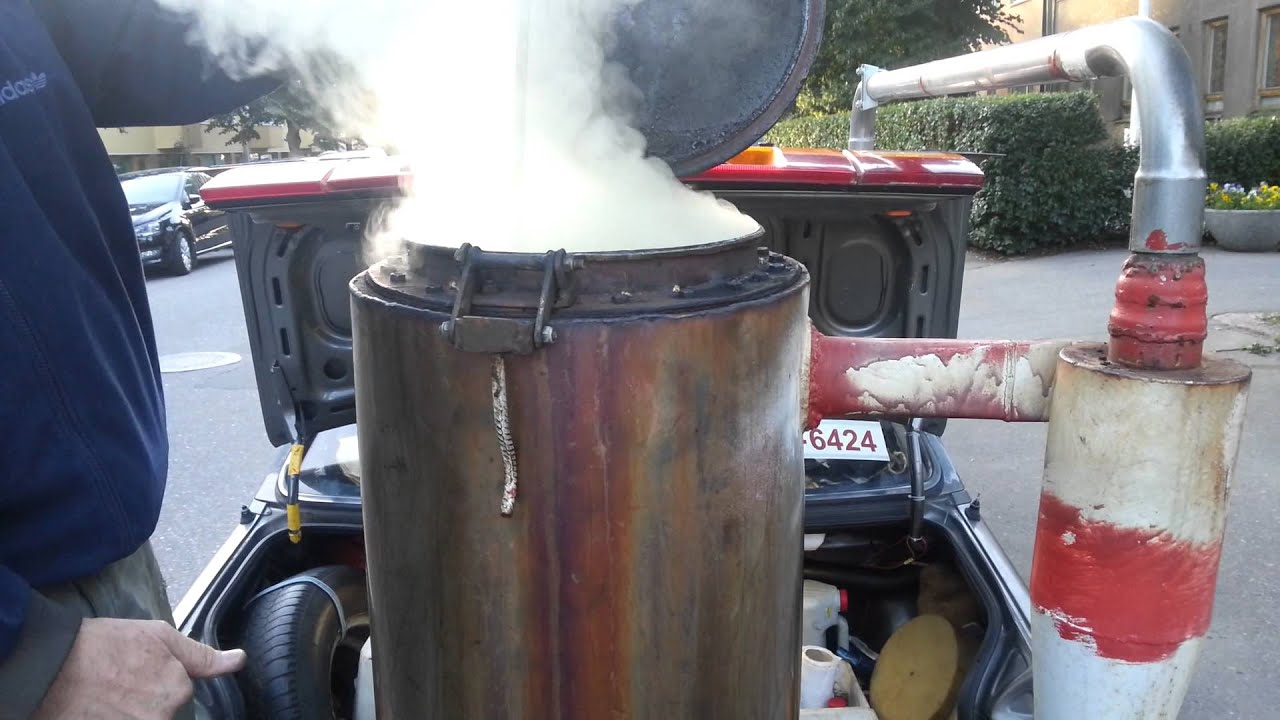

Hi max i did not reconize the guy packing the hopper,was that you or the guy running the vidio devise. Nice vidio watched it several times before knowing it was yours.
Max, I used a “mantel-heated” hopper in one of my earlier builds. Although not the reason for discarding it, but when I removed it, I found that a lot of soot was built up in the mantel and would have been a problem had I not abandoned it when I did. If you get soot build up in the mantel, how do you handle it? Or if you don’t get soot build up, what are you doing that prevents it? TomC
