I hope you can translate, there is a lot of interesting stuff in these newspapers.
9 Likes

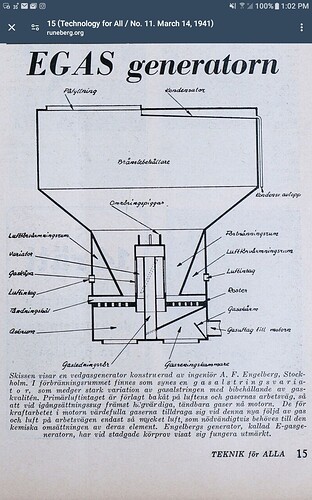

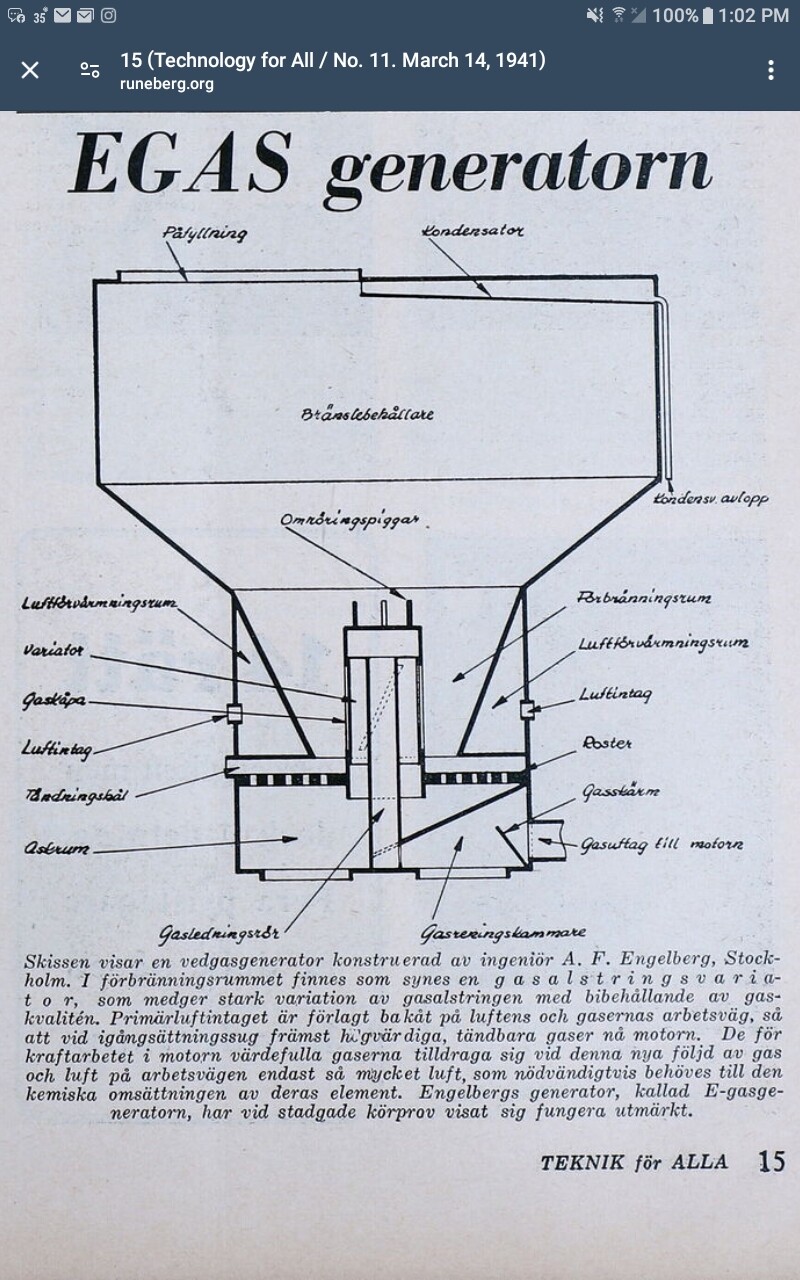

With my Google Translate I was able to read the diagram. Air intake, I understand this okay, but I am still not sure where the air goes after it is in the air preheater chamber area. The sloted pipe looks like the gases will have a varable speeds from what it said? After it enters into the slots and down the gas pipe. Does it enter from the top of the pipe some how and go down the pipe and out the side bottom into the gasification area and then out to the engine motor? Very interesting design indeed. Has anyone seen a better drawing of this gasifier and flows of the air and gases?
