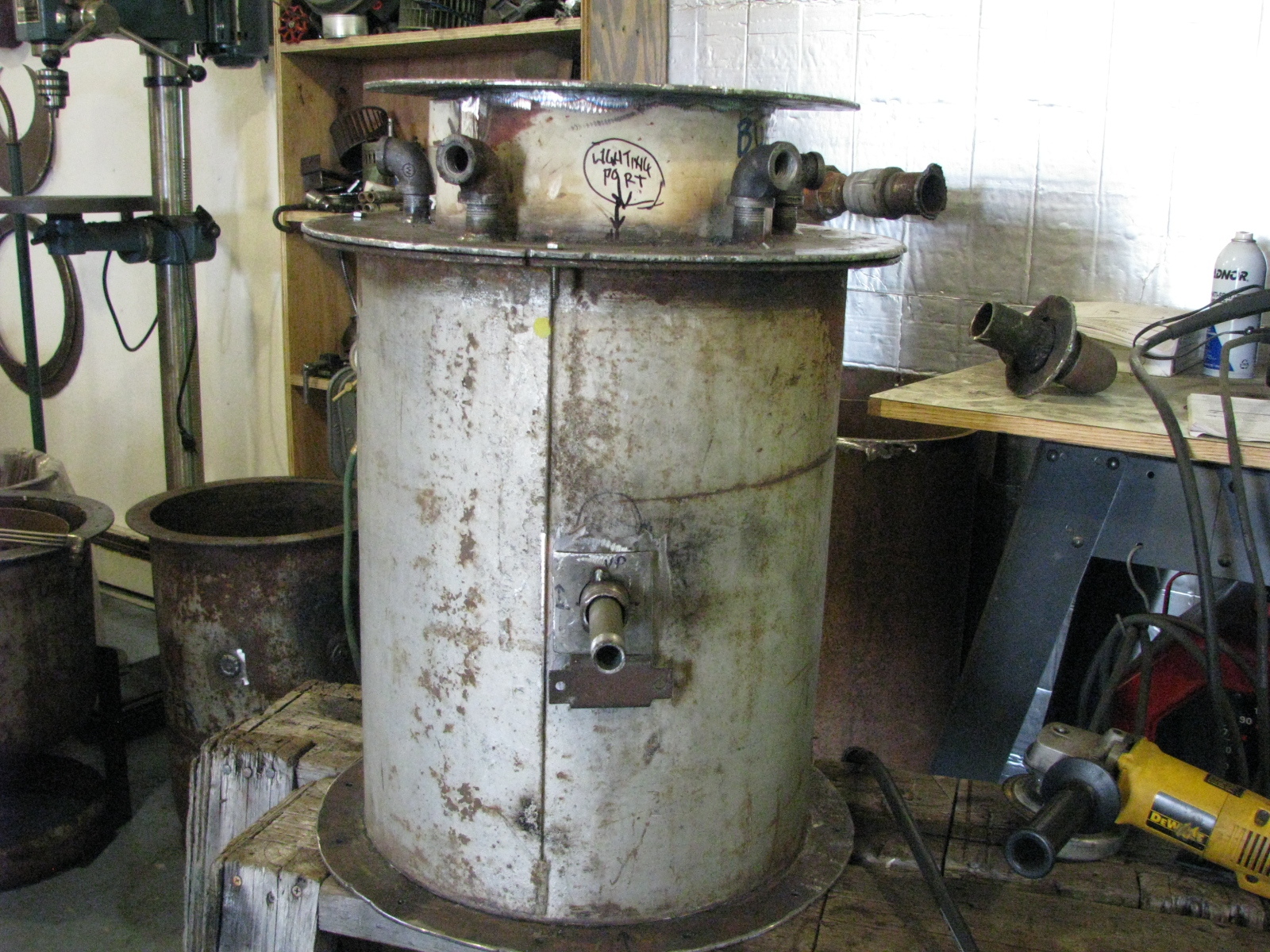

Here’s how I installed an airtight ignition port through the outer shell and into the burner unit.

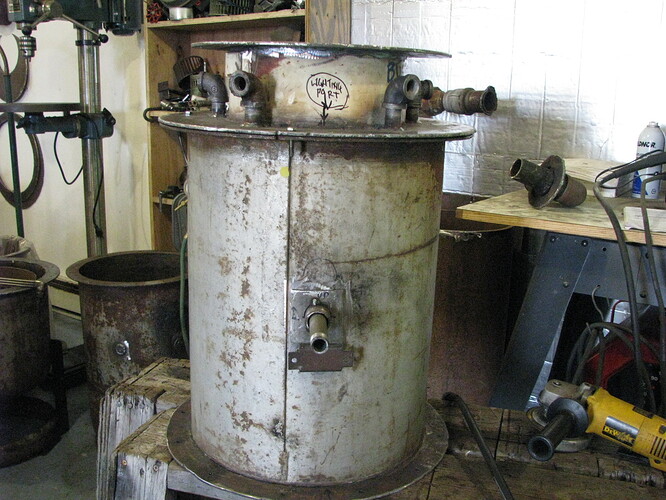

ignition port located 1.JPG1600×1200 864 KB

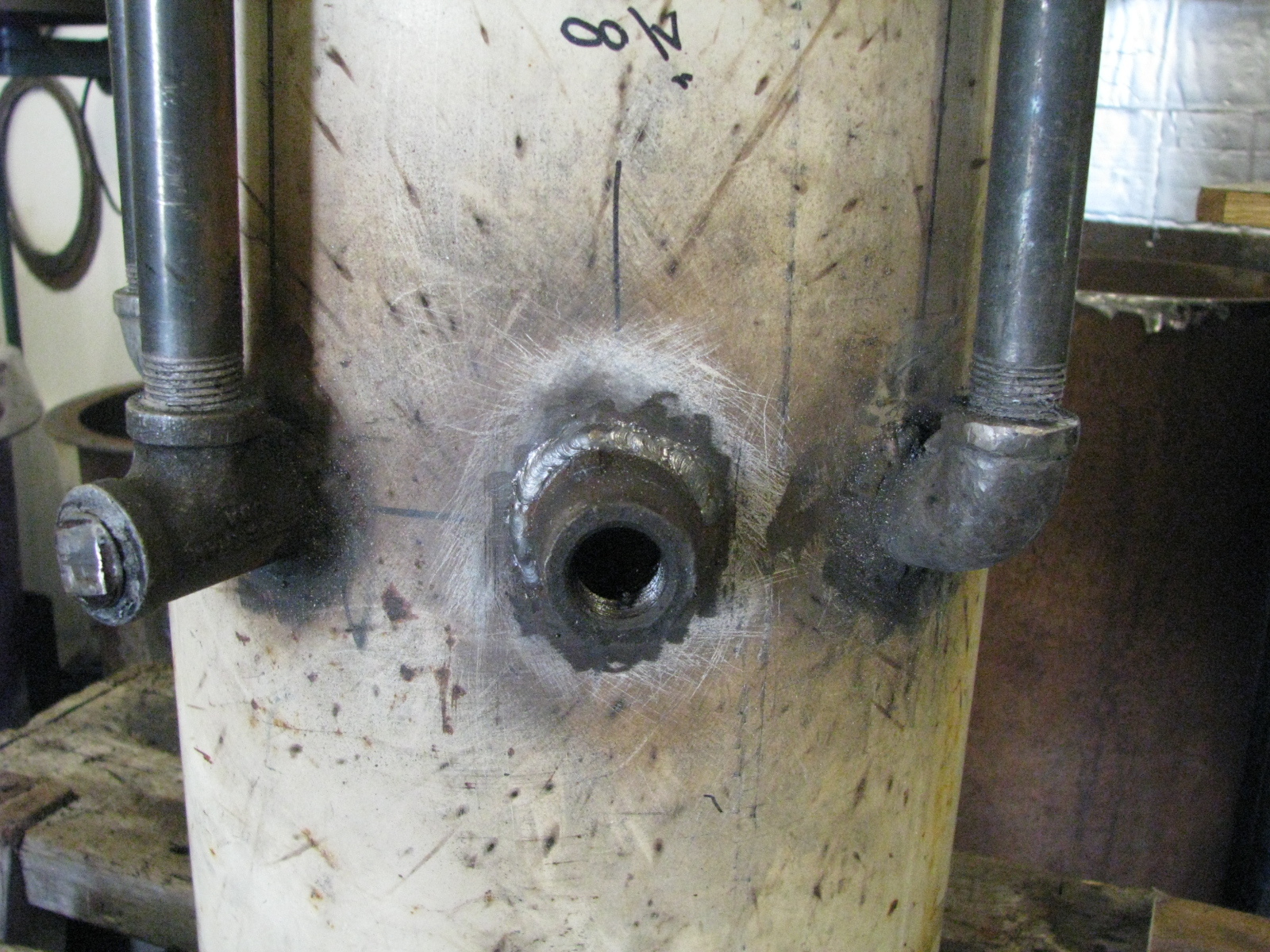

I located the ignition port on the initial layout of the burner unit and welded the receiver fitting on.

2.JPG1600×1200 829 KB

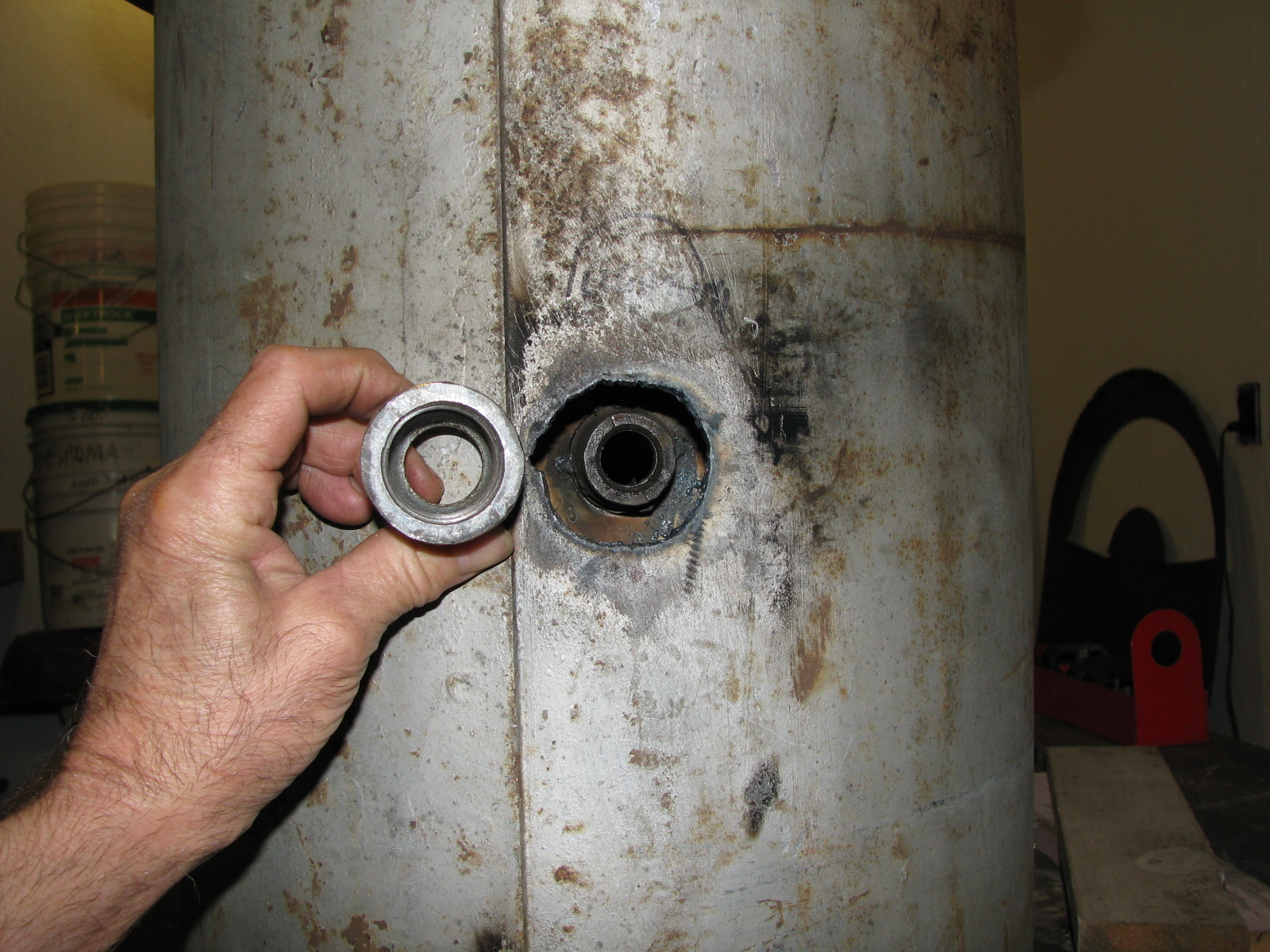

The hard part is the lineup. Install the gasket and bolt the burner unit in place in the outer shell. I had the hole where I thought it would be, but xxoo!!! I was off, so I enlarged the hole.

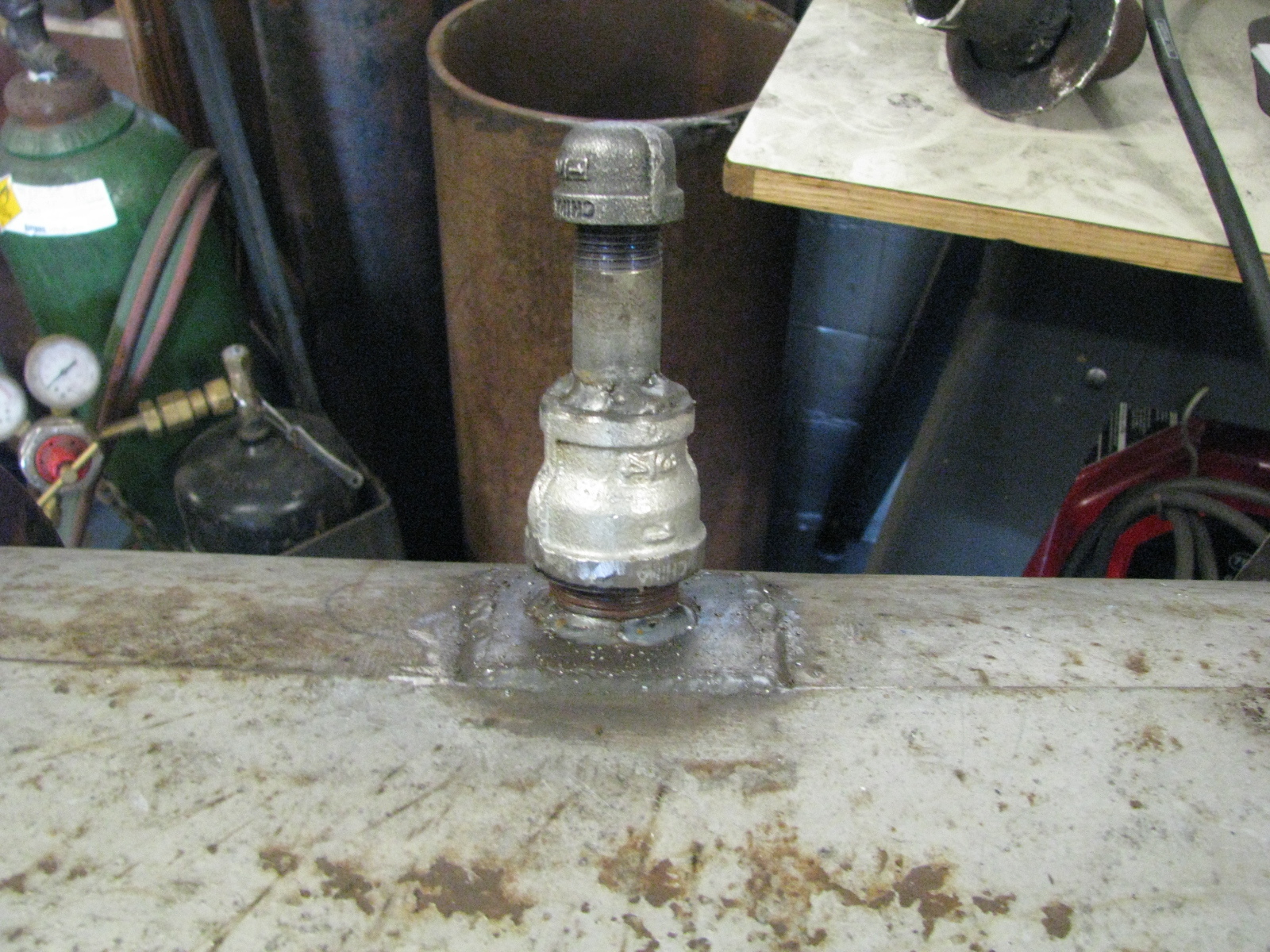

3.JPG1600×1200 863 KB

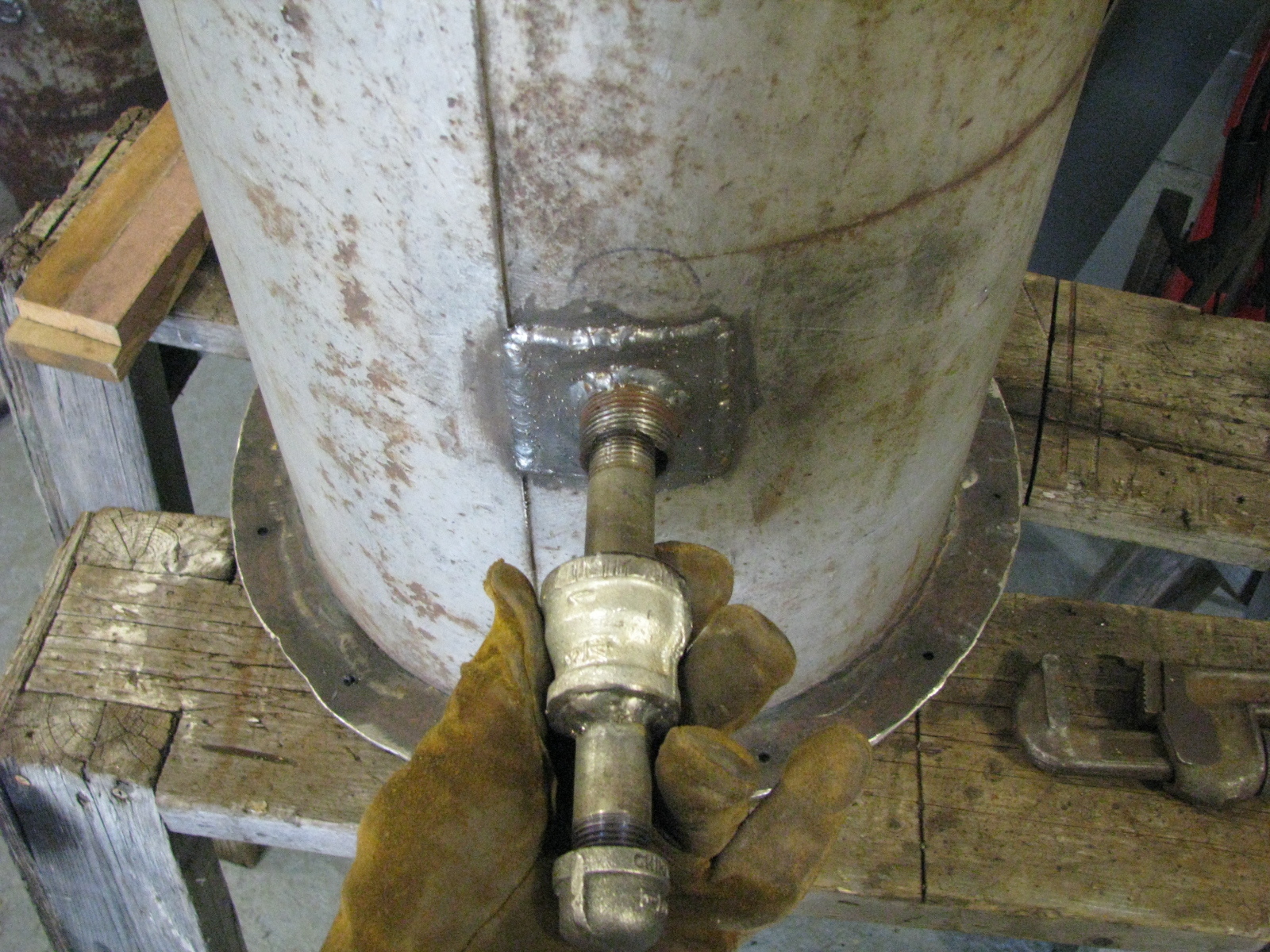

I used a plate to cover the hole and tack welded the fitting to the plate. I then screwed the pipe securely into the inner shell so it was airtight.

4.JPG1600×1200 892 KB

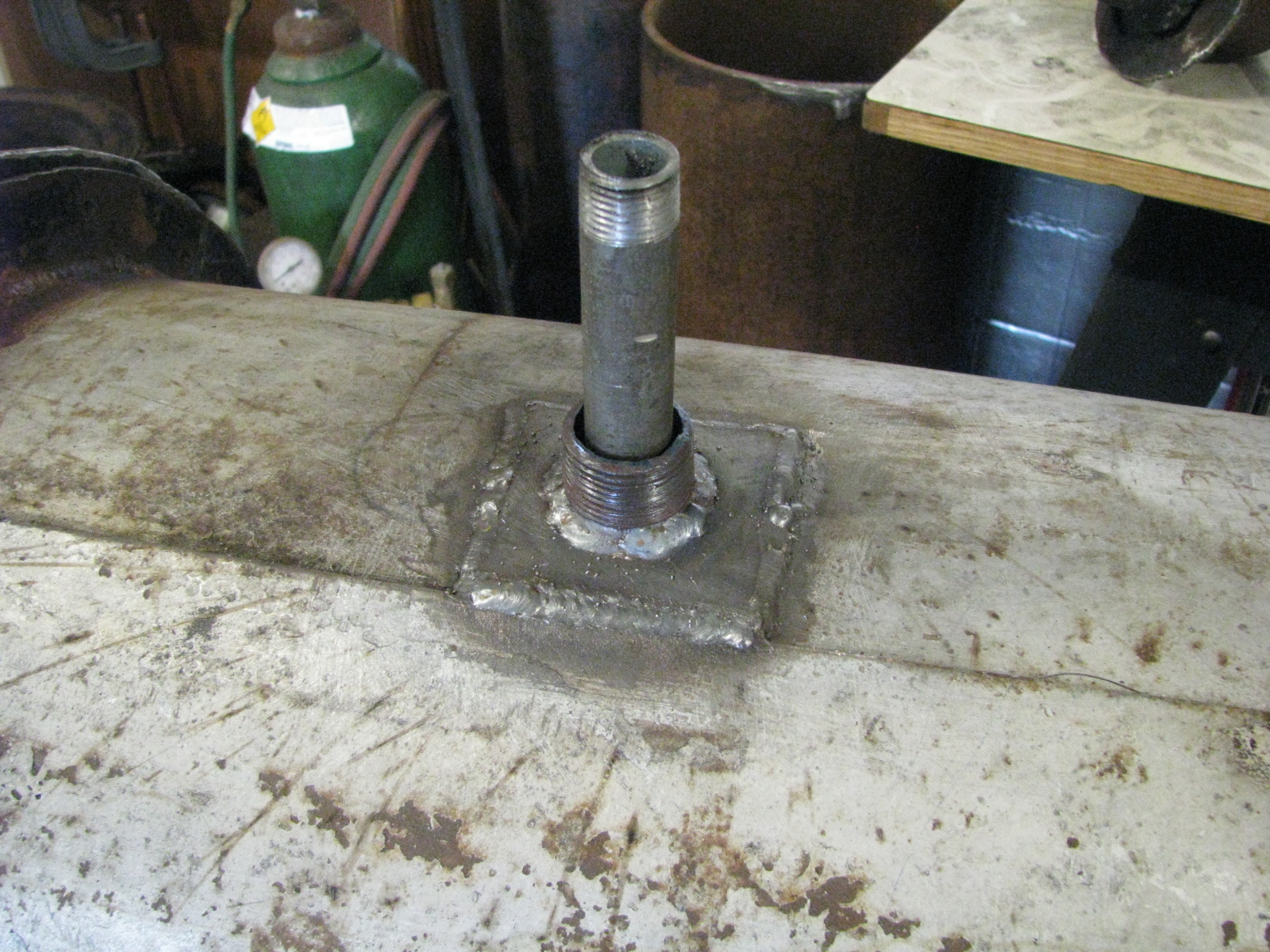

With the lineup good I welded the plate to the outer shell and welded the fitting to the plate. Important: The hole has to be big enough for the pipe to pass through. Seems obvious, huh.:expressionless:

7.JPG1600×1200 831 KB

Slip the fitting over the secured pipe and tighten the fitting securely. Now weld the fitting to the pipe.

IMG_0093.JPG1600×1200 876 KB

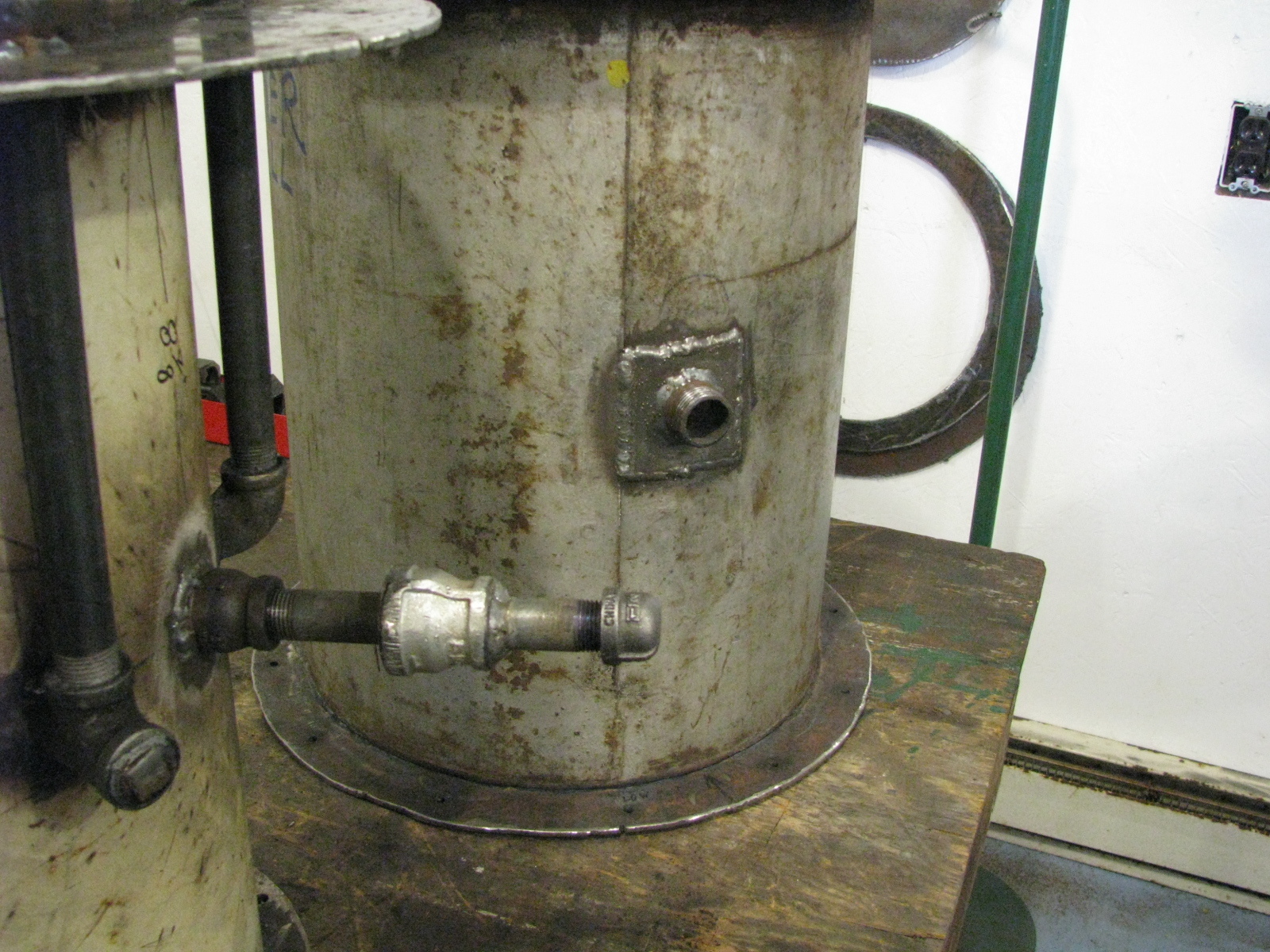

If you were careful, the pieces should engage both inner and outer shell on assembly with no problem and should be airtight. These were :grin: Phew.

IMG_0095.JPG1600×1200 812 KB

This is what it will look like dismantled.
One note, I would use at least a 1" ID pipe instead of the smaller size I used here. It was a little hassle to light.
