Making my simple fire gasifier

Hi Brian , I use a few old saucepan’s with loose fitting lids i can place on the pans inside the fire and fill inside so nothing ends up on the living room floor then once full place the lids on and take them outside , there i have a 10 gallon bucket with lid ,i tip the pan full into the larger bucket and then tap the charcoal down with a piece of 2x4 to crush it so i can get more into the bucket works like a dream and never had it burn away , i also choose what wood to burn when i am harvesting engine grade charcoal as normal split cut fire wood takes too long and because i have a wetback i need real hot heat for the radiators around the house so i burn demolition timbers from old houses being pulled down or hard wood pallets ,that way i get at least a gallon an hour of charcoal .
Dave

5 Likes

Thanks again Dave. The saucepan idea is a good idea.

Searching around for more information about using TLUD for making charcoal this helps explain how Rindert’s charcoal maker works. I’m not sure if I really understand it but I think the tin can chimney has the secondary burn holes/slots so it doesn’t need the double (or triple) wall like The MIDGE Gasifier Camp Stove.

1 Like

The chimney is also there to pull a draft, drawing air from beneath to the burning wood. That’s how the burn moves down, going to the source.

If you run forced air with a bilge blower or some other fan, you don’t need to have a stack on top. Bruce Southerland has done this, and I’ve played around with it.

One thing I’ve done with solid metal drums, is to utilize the 2" bung in the top as the air inlet. Cut out the solid bottom with a drum opener, invert the drum and there you have your air inlets. Make sure to replace the 3/4" bung with a metal plug as well, most are plastic now. I have a grate at the bottom so air can go evenly throughout the TLUD as well. Easy to shut down, just screw on a pipe cap and put a sheet metal lid over.

2 Likes

If you wanted to have a gang of TLUDs running batches you could always get those metal trash cans with lids, and go with the sand method to seal up on the bottom.

Just be careful when the galvanizing is burned off. It’ll be nasty.

4 Likes

Great summation Dave, of how to make good engine fuel grade wood charcoal:
Yes, some is the method.
The but more than half the success will be the actual wood stocks chosen. Garbage woods, poor charcoaling woods IN . . . and you will get garbage (biochar for the garden) Out.

Dave you used the word “wetback” for your home heating system?
That is slang meaning a water heat transferring storage system, yes?
Not some poor illegal into Auz immigrant hiding down in the basement, enslaved, Roman baths like, stoking the heating fires for the elites up in luxury?

Regards
Steve Unruh

3 Likes

Another wet experiment today while it’s raining.

Just some big tin cans and a juice can chimney.

As I was testing this I kept cutting more air holes trying to get the best burn.

This is what my chimney can ended up looking like.

And this is the double coffee cans looking down showing the bottom holes.

For my 3rd small batch I added a section of flue pipe. The wood for that batch was some cut and split pieces of dry 2x4’s and it burned fast with almost no smoke at all. The flames out the top were almost invisible and mostly just heat waves.

This was the result from 3 batches. I dumped each batch into a bucket of water to put it out so it is wet and not a large amount but I really just wanted to test this idea before trying to build a bigger version.

7 Likes

Your not the first to have had that thought, but I haven’t heard of anyone actually doing it yet, one guy is making heat and CO2 for his greenhouse and biochar all at the same time.
Link to mentioned discussion.

4 Likes

Hi Steve , yes my fire has what is called a wetback ( old English term for a boiler in the back of the fire box ) fire box size is 24w x 10d x 11H
My More modern wood burning fire has the boiler on the sides and back to steal as much heat from the fire and transfer it to my radiators around the house ,corner to corner i can get 2ft wood in just about but try and keep wood as small as i can so i make more work for my self and of course more fuel for the engines .
I have 2 ways i collect the charcoal if i have a lot of very small coals i can use a small shovel and scoop it straight into the pans from inside the fire , that also gets a fair amount of ash as well , or if its fairly large chunks i use the wife’s old kitchen tongs she kindly donated to me ,but i have to wear welding glove for that as its so damn hot inside .


13 Likes

I was thinking more like what Dave said he does. While the furnace is being used anyway, scoop out some of the hot coals and reload the furnace with fresh wood. Put the hot coals into something airtight and fireproof to go out leaving the charcoal for use as engine fuel.

When I say engine fuel, I’m only talking small engines (for now) like running a generator or the log splitter for a hour or so at a time. I can imagine, on a cold day, being able to collect a scoop or two each time it needs more wood added.

Keystone stove

I don’t know if Gary still uses or builds these anymore. It looks like you would have to build it yourself. I’m just planning to swipe some coals from the existing house furnace but something purposely made to make charcoal like the Keystone stove might be an option for a workshop or garage.

8 Likes

Cool, I learned something today.

4 Likes

Rindert, I’ve been searching for either a down draft gasifier or raw wood gasifier design that wound work with my rather small engines. Did this end up working?

Most of the charcoal designs I have seen are updraft and that is likely the simplest type but I’d like to make my next build be a down draft. I’d like it to be as small as possible but big enough to get me at least half an hour.

I was looking at a mini WK gasifier but it looks like it didn’t work or at least wasn’t finished.

6 Likes

hello brian, on my topics you can see some small charcoal downdraft gasifiers for my mowers, tiller, stationary unit…also kristijan has one on his walkbehind mower…
nice new active people here on the forum…!

7 Likes

Brian M,
You may not have seen this yet. It might be what you are looking for in a down draft charcoal gasifier:

5 Likes

I still think I can make it work, at least on charcoal. I now have a 2200 psi pressure washer so I can spray all the tar out of the inside. Will make makes working on it a lot easier I hope. I kind of got more busy with work for a while but should be able to get back to it now.
Rindert

3 Likes

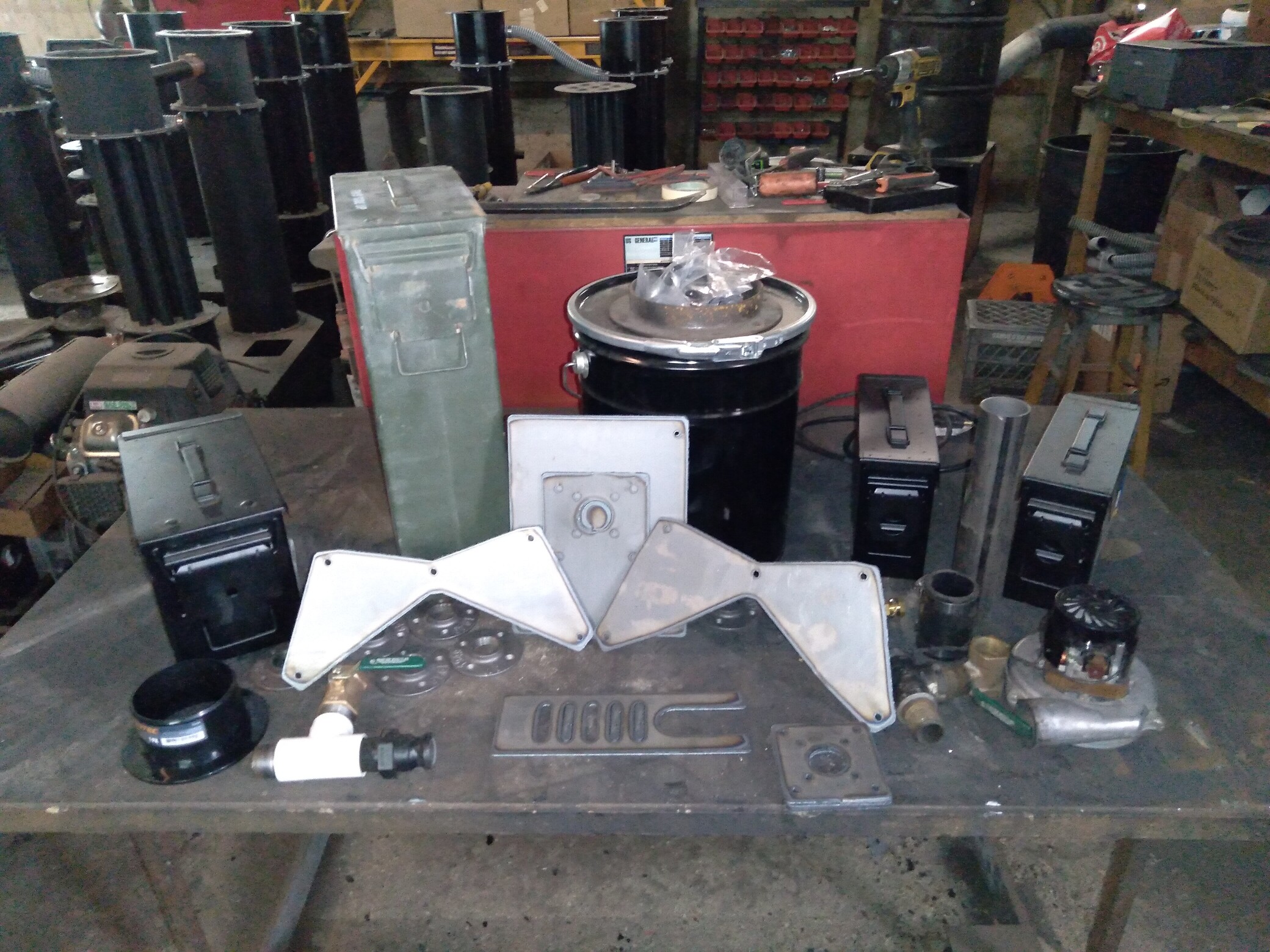

Yeah dont be afraid to be creative. Consider this as the concept, I would strongly encourage you to build the unit out of something more robust than an ammo box. You dont have to build out of a square box you can use round tanks just as well.

4 Likes

Yeah, That’s where I’ve come down too. I like old propane tanks and water heaters for material.

4 Likes

One thing me and Rindert didn’t do is follow the dimensions 100%. It is very dimension sensitive. Also the grate is meant to be fixed. One big thing to keep in mind as well, is any gasifier that Joni has brought up require high velocity at the nozzles. You do this by making the orifice tip like a jet. Say you want a 10mm nozzle, drill out 10mm and behind it drill it out a little bigger.

2 Likes

I found a better barrel with a lid that I’m guessing is maybe 15 gallons.

Trying to shovel the hot coals directly into it instead of blocking the holes in my water tank burn barrel.


I chopped it up as I was filling it using the shovel and looks like this will have a lot less wasted waiting for it to go out while continuing to smolder. No smoke getting out after closing the lid. Plus, this will be dry so should be usable as soon as it cools and gets classified and ground to engine grade size.

12 Likes

Brian , when you first load up that drum with glowing charcoal leave the lid loose don’t what ever you do make it air tight to start with wait till the coals stop glowing before sealing up the lid air tight ,other wise it will burn up any oxygen inside and create a vacuum and collapse the drum .
Dave

8 Likes

I don’t have the clamp for the barrel’s lid and it doesn’t have a gasket so it won’t seal completely air tight but good enough to keep the coals from continuing to burn.

I misjudged the angle it needs to get the charcoal to go down the screen so this ended up shorter than I intended but it separates the finer (1/2" and smaller) from the charcoal I will still need to grind. I’ll still have to screen the fine stuff once more to get the ashes and biochar out.

This screen can also be used to get the rocks and bigger clumps out of my compost pile.

This is the fine pile from yesterday’s barrel of charcoal.

This is what I got just from separating the charcoal without any grinding besides breaking it up with a shovel. I’m figuring there’s 2 hours worth of generator fuel in that bucket ready to use. Probably a gallon worth of biochar. That isn’t even counting the 3 or 4 buckets of bigger charcoal that could either be ground finer or saved for forge, foundry, or BBQ use.

The better barrel to put the glowing coals into was the key to having a practical system for making my own fuel. Gotta go find a lemon now.
