The Barrel in Barrel in Barrel gasifer

Het BobMac,
Read this. Really really read this 1945 Finnish publication JanA put up. And study this.

My hope is this will cause you to re-think this barrel-in-barrel idea.
I set up the three barrels back in ~2008 before I met Ben Peterson. The three barrel idea would have even worked. Kindda’ sorta. Been heavy. Demanded super pre-dried wood. Been a rusting pin-holeing PITA by the 3rd, 4th season. Too damn expensive to do in SS nesting barrels. $750 + $500 + $350 for the new SS barrels.

So a bit puzzling why you want to go backwards from your trucks WK?
And make a system far too big and heavy for your Suburu projects car?
I thought that was to be a charcoal system?

Bob most of the time old heavy iron as in this original WK hearth tube needs to be retired out as a yard ornament.

In truth cut up boned out to unrecognizable scrap like BenP and Jodi recently did is the only safe way.
BenP sold, moving on with his life from wood gasification; one of his early historic saved back first years systems. His carbon steel ~2007 year Woody unit.
NOW the owner put it up on youtube as inadequate needing modification improvement to function. He really, really regrets ever letting that early ideas system out of his control. He shoulda’ just scapped it. Now moved on he DID scrap out all others.

Clessie Cummins the Cummins engines originator to win at the Indianapolis 500 used a diesel 2-stroke and a 4-stroke entry. The 2-stroke was made up to give the gotta’-try guys in his organization a bone. It was the 2-stroke that won in it’s class.
But he knew that true useable working diesel would long term be 4-stroke. Fuel economy. Less maintenances. He had that 2-stroke dumped into a deep dark river to disappear from his company’s history. A latter competitive Indy500 4-stroke was what was displayed for years in the companies lobby.
Ha! Ha! Mr Wayne proves to be a real Use-It-Up, Wear-It-Out kinnda’ guy. Not a spit and polish History preservationist.
S.U.

2 Likes

This is good conformation as I was looking at my drawing this morning and noticed what you are saying. I was reading this morning some pagers 1945 from the University of Helsinki’s Laboratory technical Journal on tests they had done and came to the conclusion the hot hopper used with a Imbert gasifer was not going to work as good as a cold hopper on a Imbert. They said the larger hopper with moisture collection tubes on the outside worked the best with condensation collection for tars and liquid. This sounds like Wayne read this article. They also tested the vaccum hopper vapor tuyere using the exhaust system, they found some gases were removed from the hopper and lost out the exhaust pipe. But the weight difference of the gasifer was less than having the hopper condensation tubes on the side of the hopper. This is where you are keeping your unit light weight.
So it looks like I will be making a revision on my drawing, The 3 Barrel idea is going to change a little. Also the hopper will be slightly larger and will be open to ambient air flowing around it. They also found that preheating the incoming air was more effective. Yes less drag on the gasifer system is very important. I have to keep this unit simple. Thank you for your in put. I appreciate it.
Bob

1 Like

Thanks Steve I have already read the report.
Bob

1 Like

Bob it was with great reluctance I said as I did.
Obviously you have the need to build something. Cheating death does that to a fellow.

Anyhow . . . since you did read that article when I saw that actual Finnish racers photo of his boxy shaped monotrator. And reread his needs-reasoning for it - low visibility, with still a reasonable fuel storage on-board . . . I could not help by think back on your topic “refueling on the fly”.
Then I saw a “Tee” across the top barrel.
The engineers analysis said the held side inert fuel was an additional cold areas encouraging condensation.
And a vehicle has the side to side shaking to center settle that fuel reserve into the center active.
S.U.

1 Like

Guys, I’m all for condensing hoppers and I don’t doubt the Finnish report
…BUT…
We need to remember this was all done in a short period of time in 1945 and the monorator inventor didn’t even know what he was up to.
They produced excellent documentation, but I doubt they produced as many wood burning hours as we have on this site. Nothing can compete with induvidual long term first hand experience.
We all know by now how small differences in input can completly change the outcome. What appears to be identical systems can behave differently and even one single system can behave differently over time.

Well, what I’m trying to say is…
My personal experience is that with a wide hopper the “side to side shaking to center settle that fuel reserve” doesn’t happen easily. Especially if the chunks are condensing wet, cold and gluing to the sides.
And this dripping wet outer layer of fuel - where does the dripping juice end up? On the funnel to collect tar and be steamed off again? Maybe they used a mesh funnel - but then that would make a bottom mess of mixed tar and debrie over time and the drain would get plugged soon enough.
I believe what this 1.0 monorator lacks is separating the falling and condensing fumes from the hot rising ones. WK-tubes would be the no1 solution, inner wall no2 - in my personal humble opinion.

7 Likes

Did anyone look at this video ? It shows a large fleet of city buses powered by wood gas . I think they knew what they were doing .

Sure HenryB.
Many of us have examined this video in detail.
As J.O. said . . . .state of the art for 1940-45.
At 0.42 it shows the bus pulling up to re-fueling station #2. On the roof your see a square box manifold at the base of an exhaust cone. Then you see above station #3 two conical exhaust cones. So they WERE externally heat and forced air drying down the wood fuel for best results in their non-condensing systems.
1.02-1.09 they show using a direct contact of wood char to metal system. Sweden was a long term metals making country and at this time they could make up to 40% nickel refectory metals. And Stockholm as their premier city would have the best possible.
1.59 is the first showing a man raking out lower system accumulated slipped char/soots/ash. Shows up again twice later.
Ha! Ha! 2.14 shows a second man standing far back throwing lit matches into the just opened up hopper covers to flare burn off gases.
3.13 then shows man #1 rodding down TWO separate gasifier reactor under an earlier? later? trailer system prior to sack fuel dump reloading.
A fellow can continues detail watch and see bits and pieces of state of the art 1940-45.
6.45 shows fuel trailers now having SIX high pressure fuel gas cylinders. I am betting acetylene. Not compressed woodgas. Plug in and run without all of the woodgas trailer maintenances.
Then no need for the driver or a second man “fireman” to go back as needed to grate shake and/or rod a system down.

So . . . I think with the evolved WK system we are doing much better directly use today.
Steve unruh

1 Like

I don’t want to hijack Mr. Bobs topic so I will be brief.

The gasifiers in those days and places were competing on the roads with pedestrians , horses and bicycles .

Now days it is common to be in bumper to bumper traffic at 70-75 mph :frowning_face:

Edit

Mr. Bob

This being your truck and short clip I will post :neutral_face:

3 Likes

Speaker claimed methane.

2 Likes

Hi Wayne, I do not consider talking about gasification and any input on my planned build Hijacking. I love that old video. Only 8 nozzles the old firetube design I am rebuilding right now. There is no wood gas automixer just manual controlled. And you going down the freeway 75 + miles per hour.
With my auto mixer I can get up to 75 mph but it takes a long time to get there on flat ground. I still believe the truck has lost some of the performance that it once had. Even with the new fire tube I can not over pull the gasifer. 1 7/8" opening for wood gas at the mixer is the restiction point, Instead of two, 2" wood gas openings at the mixer, and manual control on the air.
This next unit will have manual control for mixing the air.
Thank you for the video.
Bob

3 Likes

Yes thanks Steve, Henry, Tom, Joni, and JO, for your imput.
The short period of time 1940 to 1945 they use these styles of gasification and they worked, with lots of man power maintenance to keep all the gasifers going. And at the time it was the best technology they had developed. When the war ended the gasifer were going head to the recycling pile when they were no longer needed. They had now gasoline and diesel fuel again to use.
Now today only 1 in 1,000,000 people use this wood gas technologies in the world. I am glad I stand with you all as a part of that group of wood gasification people.
Trying to build a light weight gasifer is a real challenge like Joni has done. Can it have any of the WK fire tube build in it? Some things but not the heavy firetube design. So over on
the WK premium members I am reworking the old WK firetube to make it lighter.
The Three barrel design going the change, to much weight. I love constructive criticism… if you see me making a mistake tell me. This is why I putting it on paper first. All of this imput has been excellent.
The concept I am try to achieve here is using the common barrels no a salvage barrels. Small ones like Joni uses for smaller gasifers running 4 cylinder engines and larger barrels for the larger gasifer running 6 and 8 cylinder engines. Thanks again for all the imput.
Bob

3 Likes

I think that nothing can be done easier and more efficiently than such a gas generator. Another thing is this design needs to be equipped with a steam and resin condensation system. Which will allow her to be almost flawless.


this is a restored copy of the Visko factory production

4 Likes

What did you use to bend that pipe the nozzles are in, Joni? I’d sure like to see more details of that unit.

2 Likes

May initial search did not give me the information I wanted. BUT you and others are making me think and look beyond for the answers for this I Thank you and everyone else for the brain exercise.

Blessings
Tomw

2 Likes

Ceramic matrix composites

Matt said something about this . Wanting to make some part of a gasifier out of ceramics . Some are using nozzles made out of different material . Some where in there is the difference between tar and ink which is an reaction with iron . There is a number of jet engines built . at one time there were no jet engines built but there were a lot of wood gasifiers .

Tom,
the unit couldn’t be easier! My 4.0 version was a copy of it (tuned to my motor) and was supplemented with a bunker heating. She showed herself well and it was very easy to assemble it. At the time when I used this system, I did not yet have information about such a design of the cleaning system, so I decided to go further. Returning now to this system, I think that this is a very good and workable thing. When making my gas generator to make an air nozzle ring for the air nozzles, I just bought four 3/4 "steel water pipe corners and welded them in a circle.

2 Likes


these are the photos that we managed to find about my version # 4.:grin:

6 Likes

the process of working on the gasifier version # 4 го

7 Likes

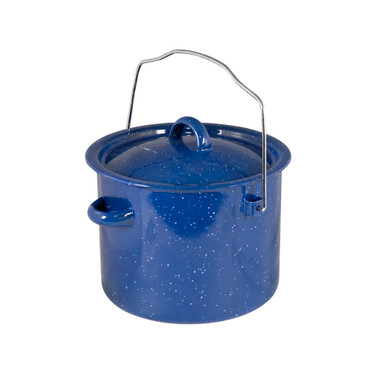

enamel finish would prevent erosion pin hole of gasifier

Ha,ha, Joni even in your country you are referring the gasifer in the female from. Yup,
You understand Gasifers.
Bob.
